Samsung DW80CG5450SRAA Dishwasher, 24 inch Exterior Width, 45 dB Decibel Level, Fully Integrated, Stainless Steel (Interior), 7 Wash Cycles, 15 Capacity (Place Settings), 3 Loading Racks, Wifi Enabled, Stainless Steel color

Specification    Value
Product Type    24" Built‑Under Top Control Dishwasher
Model    DW80CG5450SRAA
Color / Finish    Fingerprint Resistant Stainless Steel (STSS)
Install Type    Built under
Control Type    Hidden touch (top control)
Handle Type    Recessed / pocket handle
Display Color    White LED
Washing Type    Storm Wash™
Fingerprint Resistant    Yes
Capacity & Performance
Capacity (Place Settings)    15 place settings
Silence Rating    46 dBA
Energy Star Certification    Yes
Annual Energy Consumption    239 kWh/year
Water Consumption per Cycle    3.2 gallons per cycle
Dry System    AutoRelease™ Door Dry
Cycle Time (Min)    111 – 142 minutes (depending on program)
Number of Wash Arms    3 (Upper / Mid / Low)
Food Disposer    No
Whisper Quiet    Yes

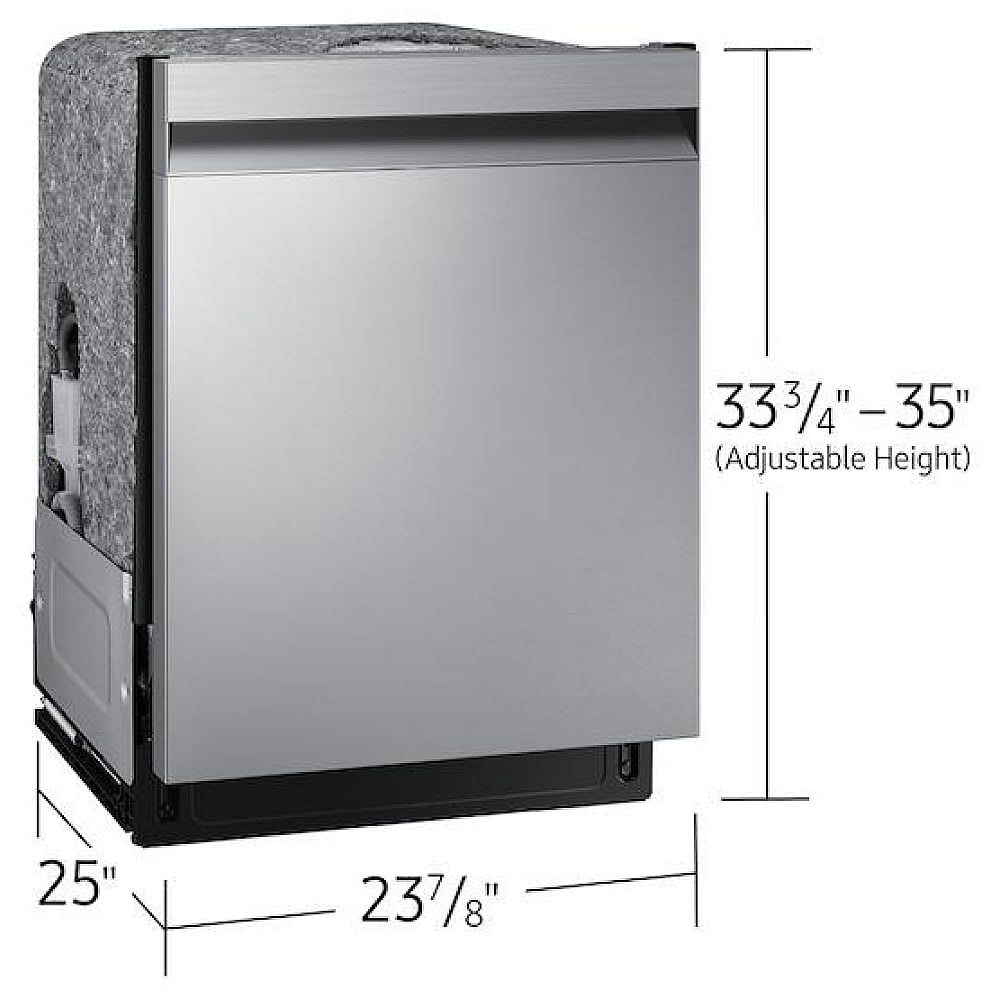

Dimensions & Weight (Product)
Class Width    24 inches
Net Width    23.875 inches (23 7/8")
Net Height (Min)    33.875 inches
Product Height with Legs Extended (Max)    35 inches
Net Depth (Without Handle)    25 inches (24.9" nominal)
Net Weight    38 kg (approx. 83.8–84 lb)
Cut‑Out / Installation Dimensions
Cut‑Out Width (Min)    24 inches
Cut‑Out Height (Min)    34.1 inches
Cut‑Out Height (Max)    35.3 inches
Cut‑Out Depth (Min)    24 inches
Shipping Dimensions & Weight
Gross Width    26 inches
Gross Height    34.875 inches
Gross Depth    29.75 inches
Gross Weight    41 kg (approx. 90.4–90.9 lb)
Tub & Interior
Tub Material    STSS (stainless steel)
Rack Coating Material    Nylon
Heater Position    Hidden
Interior Finish    Full stainless steel interior

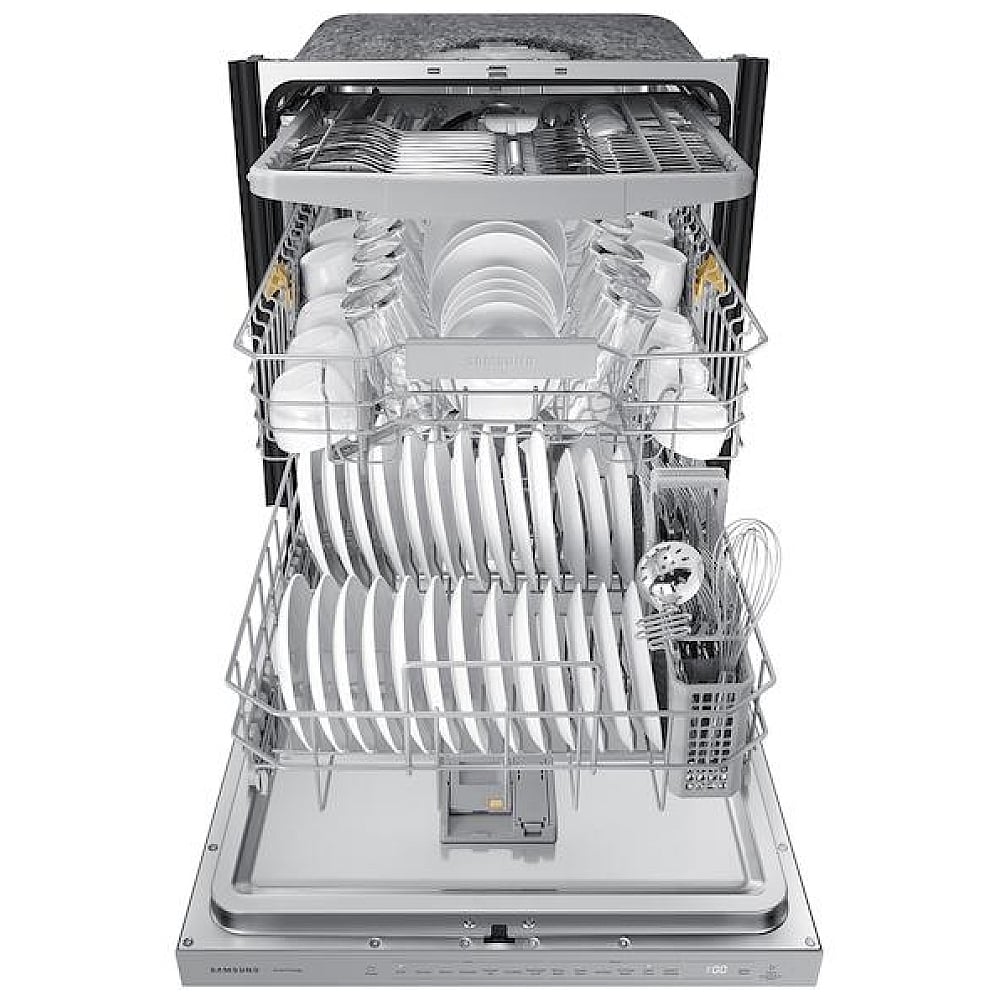

Number of Racks    3 (including 3rd rack / cutlery tray)

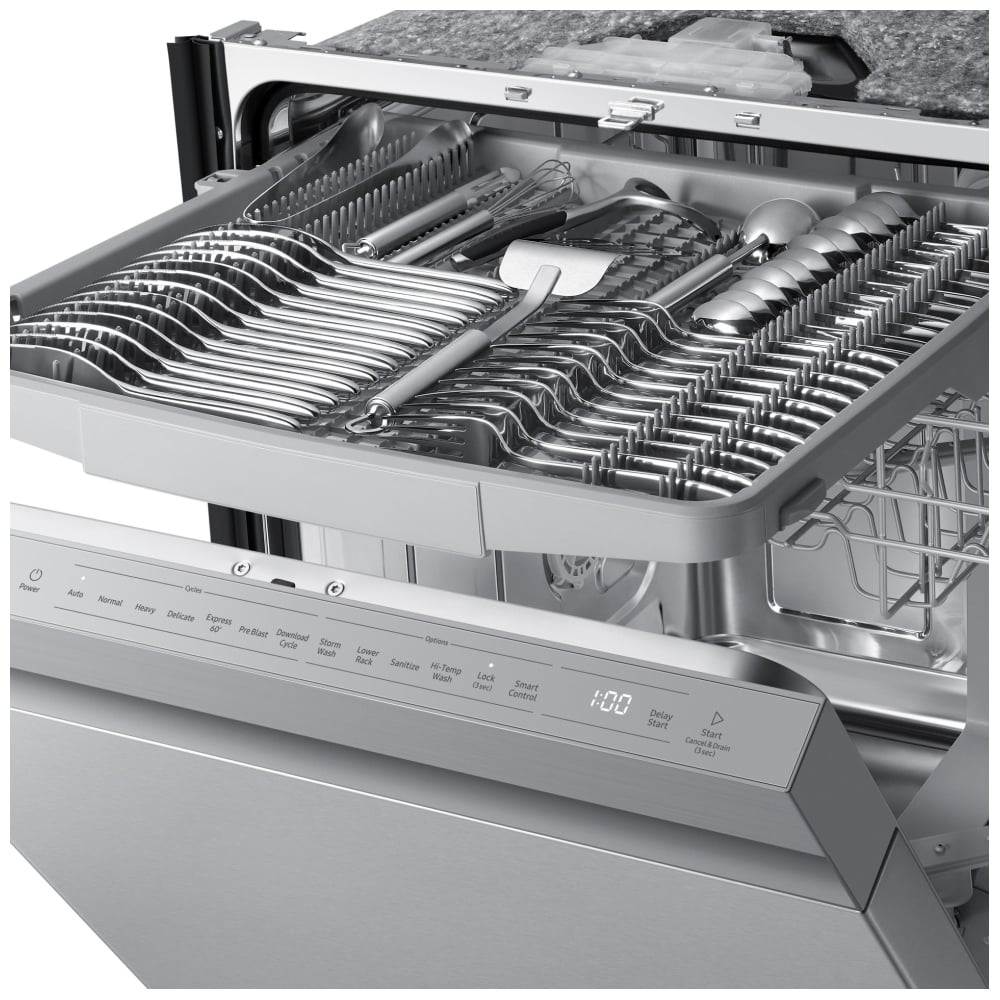

3rd Rack System    Yes (cutlery tray)
Cutlery Basket    Yes (removable basket)
Upper Rack – Adjustable Height    Yes (one‑touch height adjustable)
Upper Rack – Basket Handle    Yes (plastic handle)
Upper Rack – Adjustable Tines    1 row adjustable tines
Upper Rack – Cup Shelves    Foldable plastic cup shelves
Lower Rack – Basket Handle    Yes (some Canadian spec sheets list “No”; manufacturer spec with handle is used)

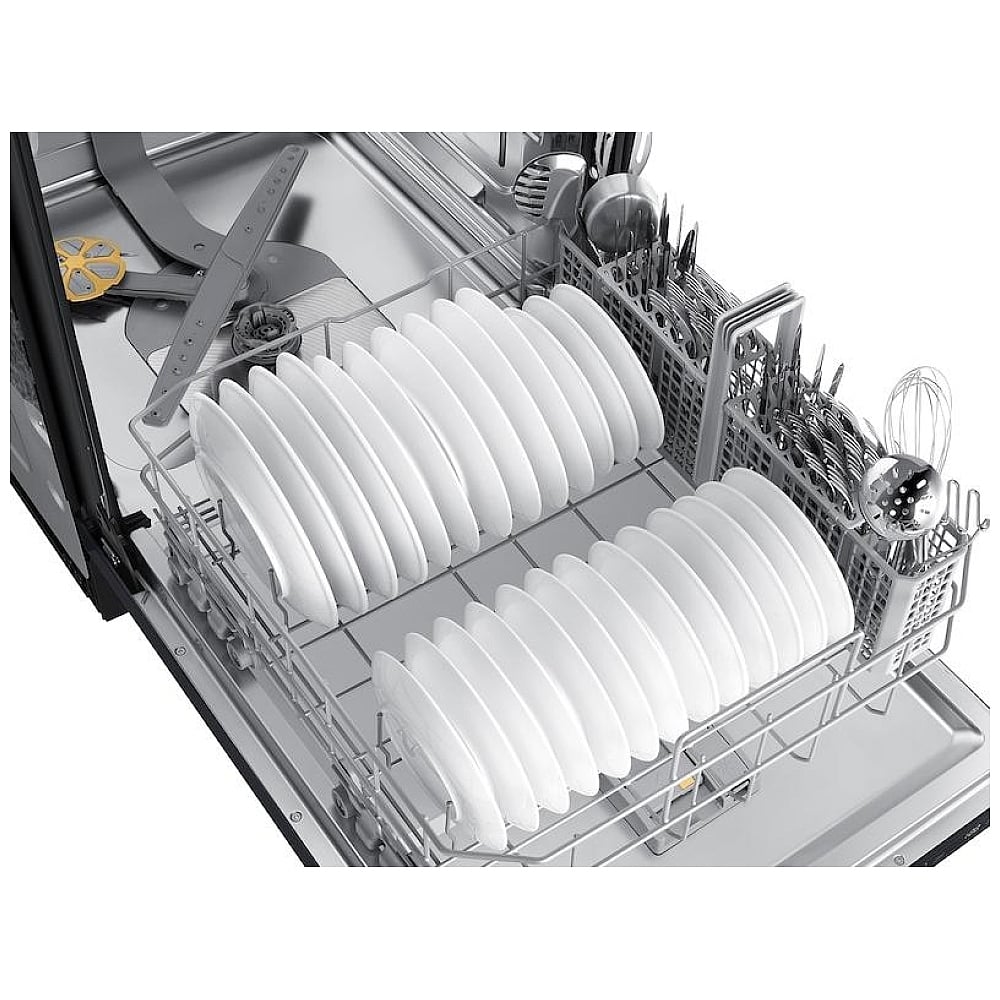

Lower Rack – Fold‑Down Tines    Yes
Maximum Dish Loading (Lower Rack)    12 inches
Programs (Cycles)
Number of Programs    7 main programs
Auto    Yes
Normal    Yes
Heavy    Yes
Delicate    Yes
Pre‑Blast / Pre‑Wash    Yes
Express 60'    Yes
Rinse Only / Self Clean / Download Cycle    Downloadable cycles via SmartThings (e.g., Plastic, Pots & Pans, Baby Care, Night)
Options
Number of Options    7
StormWash™    Yes
Delay Start    Yes (1–24 hours)
Half Load / Lower Rack Only    Yes (lower rack)
Sanitize (NSF Certified)    Yes
Hi‑Temp Wash    Yes
Heated Dry    Yes
Control Lock    Yes
Smart Features
Wi‑Fi Embedded    Yes
Smart Control (Wi‑Fi)    Yes (SmartThings app compatible)
Remote Start / Scheduling    Yes (remotely schedule and monitor cycles)
Smart Energy Monitoring    Yes (monitor and control energy usage)
Download Cycle Support    Yes (Plastic, Pots & Pans, Baby Care, Night)
Safety & Certifications
NSF Certified Sanitization    Yes
Leakage / Digital Leak Sensor    Yes
Cancel & Drain Button    Yes
Start & Pause Button    Yes
Energy Star Certified    Yes
J.D. Power Awards    Yes (brand‑level award, where listed)
Electrical & Power
Electrical Requirements    120 V / 60 Hz / 10–11 A (manufacturer spec 120 / 60 / 11 A; some retailers list 10 A)
Heater Watts    1200 W
Circulation Motor    53 W
Drain Pump    35 W
Key Feature Highlights
StormWash™ Rotating Jets    Heavy‑duty cleaning from multiple angles; allows skipping most pre‑rinsing
AutoRelease™ Door    Door automatically opens at end of cycle to improve drying performance
3rd Rack    Provides extra space for cutlery and utensils
Height‑Adjustable Upper Rack    One‑touch adjustment for tall items in lower rack
Hidden Touch Controls    Top control panel for a clean front appearance
Digital Leak Sensor    Detects leaks and shuts off operation
Foldable Cup Shelves & Adjustable Tines    Yes, for flexible loading
Hidden Heating Element    Yes (safer for plastics on lower rack)
