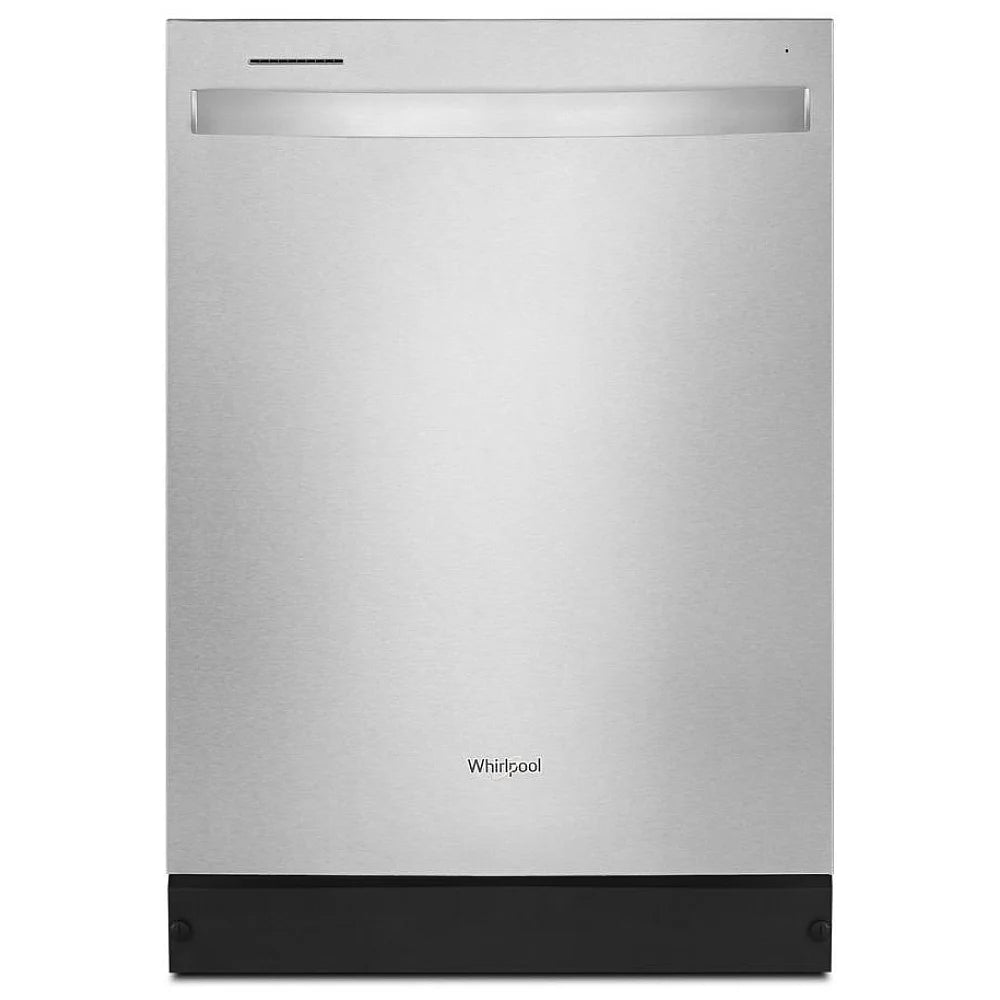

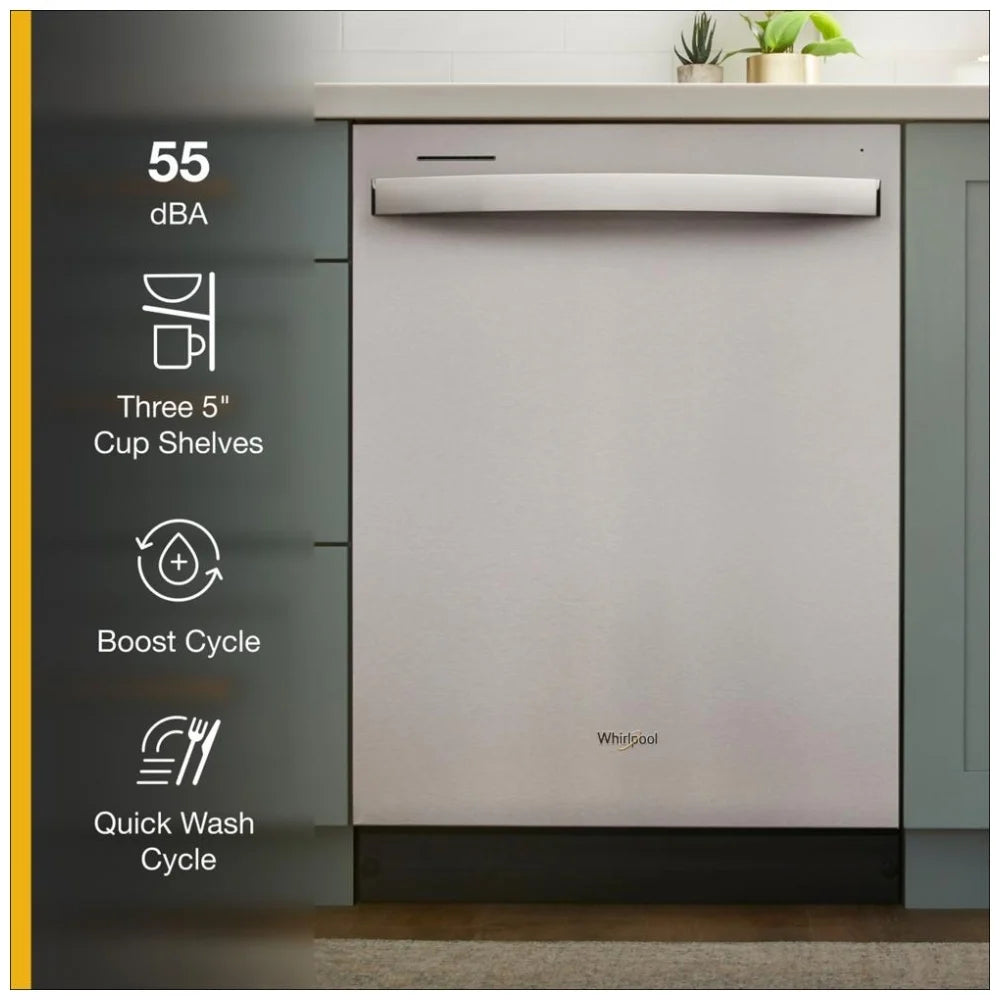

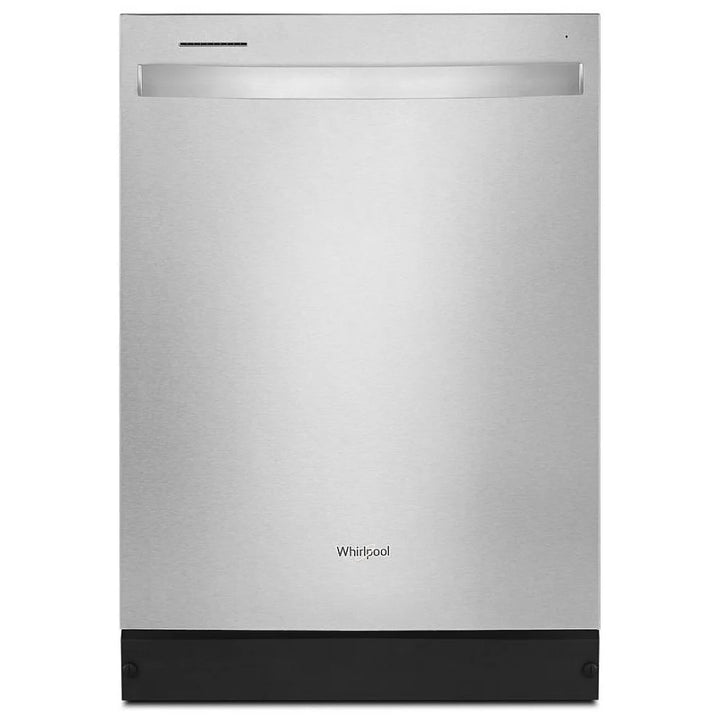

Whirlpool WDT540HAMZ Dishwasher, 24 inch Exterior Width, 55 dB Decibel Level, Fully Integrated, Plastic Interior, 5 Wash Cycles, 12 Capacity (Place Settings), 2 Loading Racks, Stainless Steel colour
| Specification | Value |
|---|---|
| Model | WDT540HAMZ |
| Product Type | 24" Built-In Top Control Dishwasher |
| Finish / Colour | Fingerprint Resistant Stainless Steel |
| Sound Level | 55 dBA |
| Number of Place Settings | 12 |
| Number of Racks | 2 |
| Number of Wash Cycles | 5 (Boost, Extended Soak, Heavy, Normal, Quick Wash) |
| Dishwasher Type | Built-In, Tall Tub 24" |
| Control Location | Top (Hidden Controls) |
| Control Type | Electronic Touch |
| Handle Type | Towel Bar / Bar Handle |
| Door Style | Flat, Solid Panel |
| Window | No |
| Tub Material | Hybrid: Dark Gray Plastic Tub with Stainless Steel Interior Door |
| Rack Material | Nylon |
| Interior Light | No |
| Built-In Water Softener | No |
| Sensor Wash | No |
| Sanitize / Sani Rinse Option | Yes (Sani Rinse® option; NSF Certified) |
| Drying System Type | Heating Element (Heated Dry / Extended Dry) |
| Dishwasher Options | Extended Dry, Heated Dry, Hi Temp Wash, Sani Rinse® |
| Special Cycles / Features | Boost Cycle, Extended Soak Cycle, Quick Wash, Heavy Cycle |
| Water Filtration | Triple Filtration Wash System, Removable Filter |
| Number of Wash Levels | 4 |
| Number of Wash Arms | 2 |
| Sound Package | Quiet Pack™ |
| Silverware Basket Type | Full-Length, Non-Splittable |
| Silverware Basket Location | Lower Rack - Right Side |
| Silverware Basket Covers | Yes |

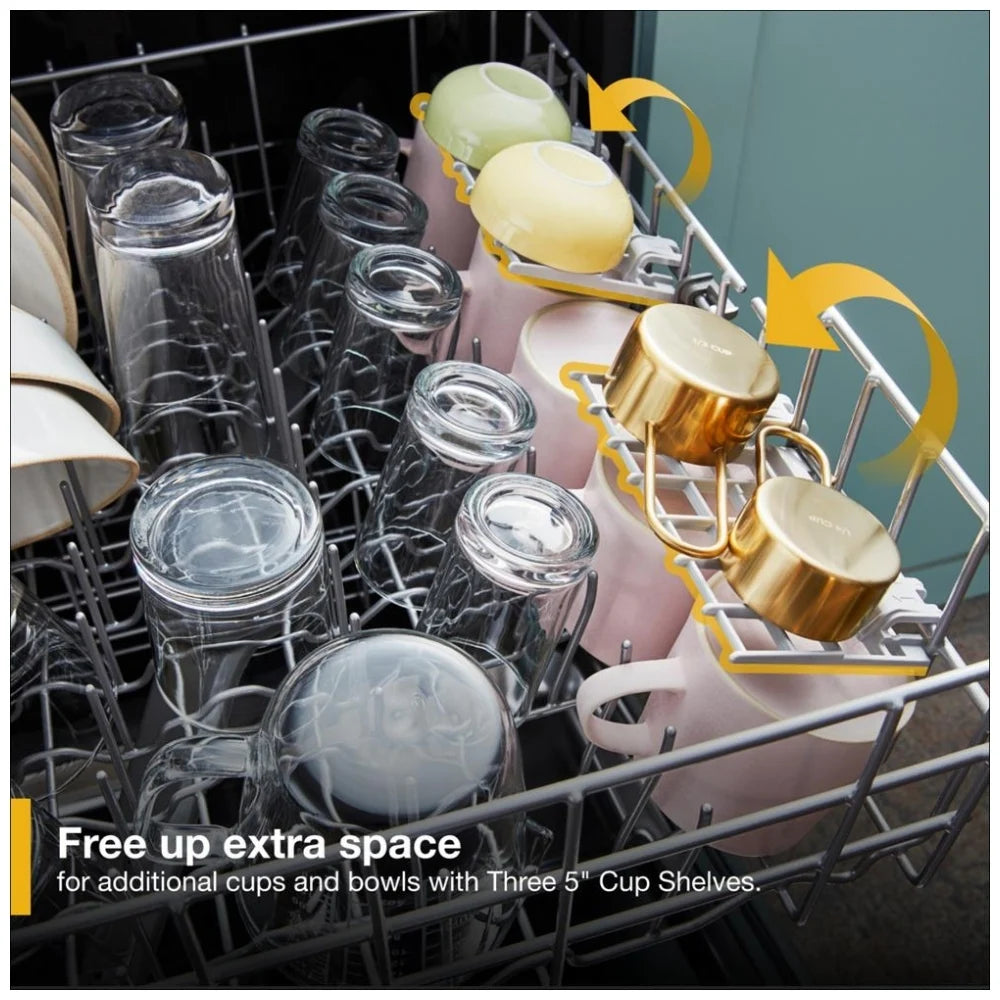

| Second Level Rack Extras | Three 5" Plastic Cup Shelves |
| Second Level Rack Adjustable | No |
| Second Level Rack Cushion-Tip Tines | No |
| Second Level Rack Fold-Down Tines | No |
| Lower Rack Style | Straight |
| Lower Rack Cushion-Tip Tines | No |
| Lower Rack Fold-Down Tines | No |
| Third Rack | No |
| Rinse Aid Dispenser | Yes, with Optical Level Indicator |
| Dispensers | Detergent and Rinse Aid |
| Automatic Temperature Controls | Yes |
| Status Light | Blue |
| Control Lock / Child Lock | Yes |
| Delay Start | No |
| End of Cycle Signal | No |
| Hard Food Disposer | No (Triple Filtration instead) |
| Wi-Fi / Smart Compatible | No |
| Panel Ready | No |
| Fingerprint Resistant | Yes |
| Width | 23-7/8 inches (60.64 cm) |
| Height | 33-1/2 inches (85.09 cm) |
| Depth (Overall) | 27-1/4 inches (69.22 cm) |
| Depth Closed Excluding Handles | 24-1/2 inches (62.23 cm) |
| Depth Closed Including Handles | 27-1/4 inches (69.22 cm) |
| Depth with Door Open 90° | 49-1/2 inches (125.73 cm) |
| Class Width | 24 inches |
| Recommended Cutout Width | 24 inches (approx. 61–62 cm) |
| Recommended Cutout Height | 34 inches (approx. 86.4 cm) |
| Recommended Cutout Depth | 24 inches (approx. 62 cm) |
| Net Weight | 69 lb (31.3 kg) |
| Shipping / Gross Weight | 80 lb (36.3 kg) |
| Shipping Width | 24.56 inches (62.4 cm) |
| Shipping Height | 35.69 inches (90.7 cm) |
| Shipping Depth | 26.75 inches (68.0 cm) |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Amperage | 8.1 A |
| Power Cord Included | No (hard-wired or separate cord kit required) |
| Energy Star Certified | No (per manufacturer; some retailers list Yes but manufacturer takes precedence) |
| CEE Tier Rating | Tier I |
| NSF Certified Sanitization Cycle | Yes |
| ADA Compliant | No |
| Star K Certified | No |
| Estimated Annual Energy Use | Approx. 270 kWh (varies by region/listing) |
| Manufacturer Warranty (Parts) | 1 Year Limited |
| Manufacturer Warranty (Labour) | 1 Year Limited |
| UPC | 883049621852 |
| Prop 65 | Yes (Cancer and Reproductive Harm warning for California residents) |
| Soak & Clean Cycle | Yes |
| Heavy Cycle | Yes |
| Normal Cycle | Yes |
| Sensor Wash Cycle | Yes |
| Leak Protection | Yes (Leak Detect) |
| Smart / Wi-Fi | No |
| Integrated Water Softener | No |
| Utility Basket | Yes (per some Canadian listings) |
