Whirlpool WSGS7530RV Gas Range, 5.3 cu. ft. Capacity, 30 inch Exterior Width, Self Clean, True Convection, 5 Burners, Storage Drawer, Air Fry, 18,000 BTU Highest Burner, Black Stainless Steel color

Controls
Display Color    White
Cooktop Details
Auto Re-ignition    No
Cooktop Control Knob Type    Weighted-Plastic
Cooktop Control Location    Front
Cooktop Control Type    Knobs
Cooktop Surface Material    Porcelain Coated Steel
Griddle Included    Optional Accessory
Heating Element On Indicator Light    No
Hot Surface Indicator Light    No
Ignition Type    Direct Spark Ignition
Total Gas BTUs - Cooktop    63,000
Details
Air Fry    Yes
Automatic Convection Conversion Temperature Adjust    No
Cooktop Configuration    All Burners
Fuel Type    Gas
Lp Convertible    Yes - Kit Included
Oven Automatic Shut-off    Yes
Oven Configuration    Single Oven
Oven Light Switch Location    Oven Control
Oven Selections    Air Baking; Air Reheat; Air Roast; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm/Warm Hold; Language Conversion; No Preheat - Air Fry; No Preheat - Frozen Lasagna; No Preheat - Frozen Pizza; Proofing; Rapid Preheat; Sabbath Mode; Start Time; Stop Time; Timer
Power On Indicator Light    Yes
Power Outage Compatible    Yes
Range Configuration    Slide-In
Range Drawer Type    Storage Drawer
Range Type    Slide-in

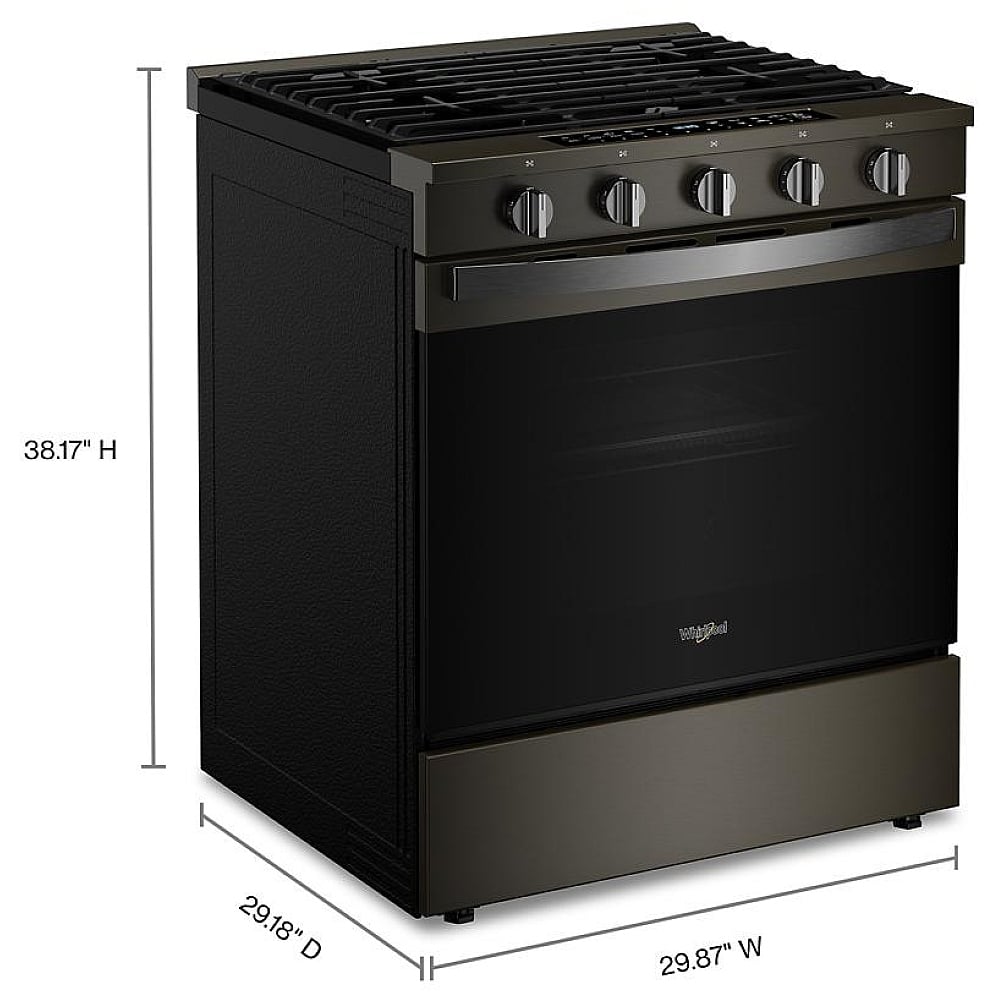

Dimensions
Product Height    38.17
Carton Height    43
Gross Weight    196
Oven Interior Height    18.625
Carton Width    32
Product Depth    29.18
Oven Interior Depth    19
Depth With Door Open 90 Degree    47.72
Depth Excluding Doors    25.45
Adjustable Height    Yes
Cutout Depth    24
Cutout Height    36
Depth Closed Excluding Handles    26.58
Depth Closed Including Handles    29.18
Carton Depth    31
Cutout Width    30
Oven Interior Width    24.25
Net Weight    180
Product Width    29.87
Electrical
Power Cord Included    Yes
Element/burner Details
Center Front Element-burner Power    12000 BTU
Center Front Element-burner Type    Oval Burner
Cooktop Element Style    Sealed Burners
Left Front Element-burner Power    18,000 BTU
Left Front Element-burner Type    Power™ Burner
Left Rear Element-burner Power    10,000 BTU
Left Rear Element-burner Type    Standard
Number of Cooking Element-burners    5
Right Front Element-burner Power    18,000 BTU
Right Front Element-burner Type    Power™ Burner
Right Rear Element-burner Power    5,000 BTU
Right Rear Element-burner Type    Simmer
Exterior Details
Door Type    Glass
Oven Control Knob Type    N/A
Oven Control Location    Front
Oven Control Type    Tap Touch
Oven Window Size    Large
General
Air Fry Basket Included    Yes
Literature Language    English; French
Range Features    Air Fry
Grate Details
Grate Details    Cast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish
Number of Grates    2
Oven Details
Bake Element Power    16,500 BTU
Broiler Element Power    1,300 W Electric Broil
Broiler Location    Top Center
Convection Element Type    True Convection
Convection Functions    Bake; Broil
Door Removable    Yes
Hidden Bake Element    Yes
Natural Gas Convertible    Yes
Number of Oven Lights    1
Number of Oven Racks    2
Number of Rack Guides    5
Oven Cleaning Type    Self Clean + Steam Clean
Oven Cooking System    True Convection
Oven Ignition Type    Spark
Oven Light Type    Halogen
Oven Rack Type    2 Standard
Temperature Probe    No
Temperature Sensor    No
Total Gas BTUs - Ovens    16,500
Smart Compatibility
Connectivity    Amazon Alexa; Android; Google Assistant; Nest; iOS
Smart Appliance    Yes
Works With    App; Bluetooth; Remote Access; Voice Controlled; WiFi
Dimensions
Depth    29.18 "
Width    29.87 "
Height    38.17 "
Carton Depth    31.0 "
Carton Height    43.0 "
Carton Width    32.0 "
Depth Closed Excluding Handles    26.58 "
Depth Closed Including Handles    29.18 "
Depth With Door Open 90 Degree    47.72 "
Gross Weight    196.0 lbs
Cutout Depth    24.0 "
Cutout Height    36.0 "
Cutout Width    30.0 "
Maximum Height    38.17 "
Minimum Height    36.67 "
Capacity FT3 (cubic feet)    5.0

Configuration
Oven Configuration    Single Oven
Range Configuration    Slide-In

Cooktop Details
Cooktop Control Location    Front
Cooktop Control Type    Knobs
Left Front Element Burner Type    Sealed Burner
Auto Re Ignition    No
Number Of Cooking Element Burners    5
Number Of Grates    2
Center Front Element Burner Power    12000BTU
Right Front Element Burner Power    18000BTU
Center Front Element Burner Type    Standard
Right Front Element Burner Type    Sealed Burner
Left Rear Element Burner Power    10000BTU
Left Front Element Burner Power    18000BTU
Right Rear Element Burner Type    Simmer
Cooktop Configuration    All Burners
Left Rear Element Burner Type    Standard
Right Rear Element Burner Power    5000BTU
Cooktop Element Style    Sealed Burners
Ignition Type    Direct Spark Ignition
Grate Details    Cast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish

Specifications
Dishwasher Safe    Yes
Matte Finish Vs Satin Finish    Matte Finish
Optional Accessories    W11692811, 4396096RB
Cast Iron Vs Porecelain    Cast Iron Grates
Country Of Origin    USA

Details
Cooktop Surface Material    Porcelain Coated Steel
Hidden Bake Element    Yes
Oven Control Location    Front Control
Oven Cooking System    True Convection
Oven Light Switch Location    Oven Control
Oven Light Type    Halogen
Bake Element Power    16500BTU
Oven Control Knob Type    N/A
Oven Cleaning Type    Steam Clean
Oven Interior Depth In Inches    19.0
Broiler Location    Top Center
Broiler Element Power    1300WElectricBroil
Convection Functions    Bake; Broil
Number Of Rack Guides    5
Oven Ignition Type    Spark
Oven Interior Width In Inches    24.25
Number Of Oven Racks    3
Number Of Oven Lights    1
Oven Control Type    Tap Touch
Convection Element Type    True
Convection Element Power Watts    925
Oven Rack Type    2 Standard and 1 Max Capacity

Configuration and Overview
Fuel Type    Gas

Exterior
Door Removable    Yes
Drawer Type    Storage Drawer

Features
Natural Gas Convertible    Yes
Total Gas Btus Oven S    16,500
Power Outage Compatible    Yes
Heating Element On Indicator Light    No
Griddle    No, Optional Accessory
Automatic Convection Conversion Temperature Adjust    No
Total Gas Btus Cooktop    63,000
Hot Surface Indicator Light    No
LP Convertible    Yes
