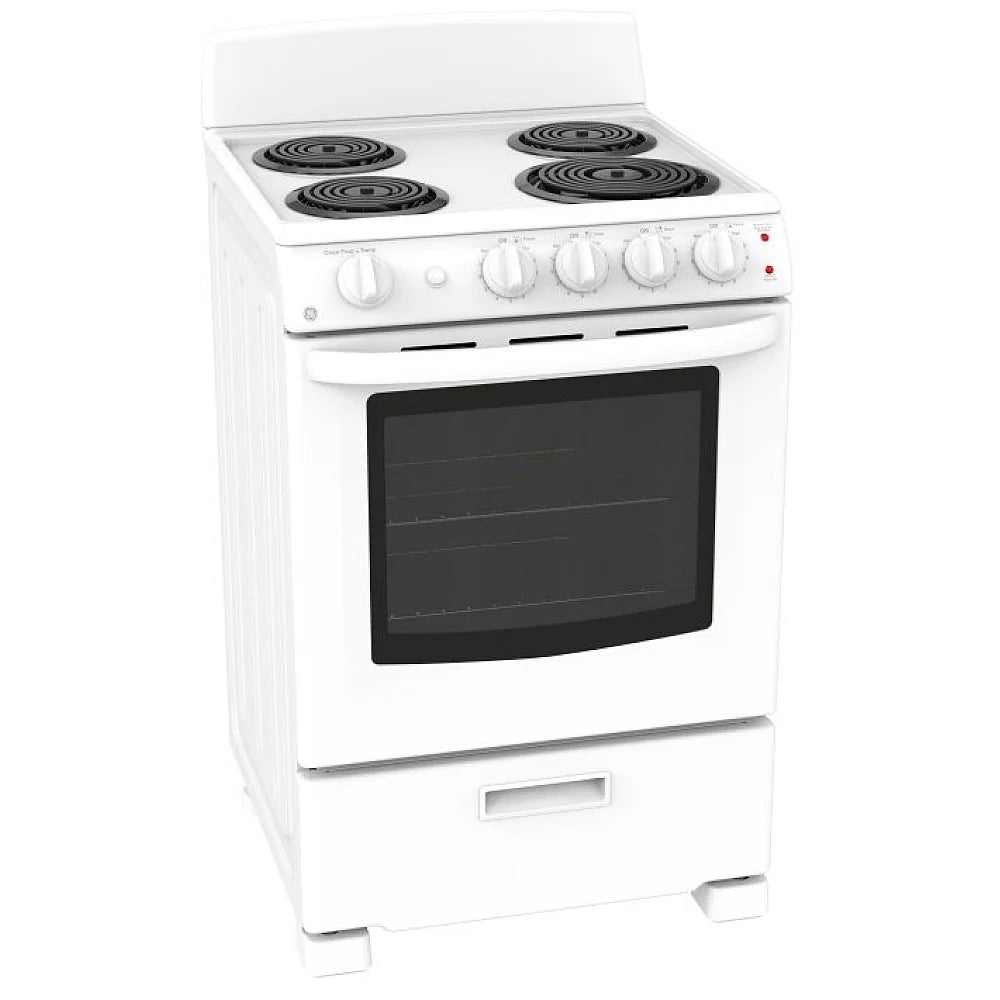

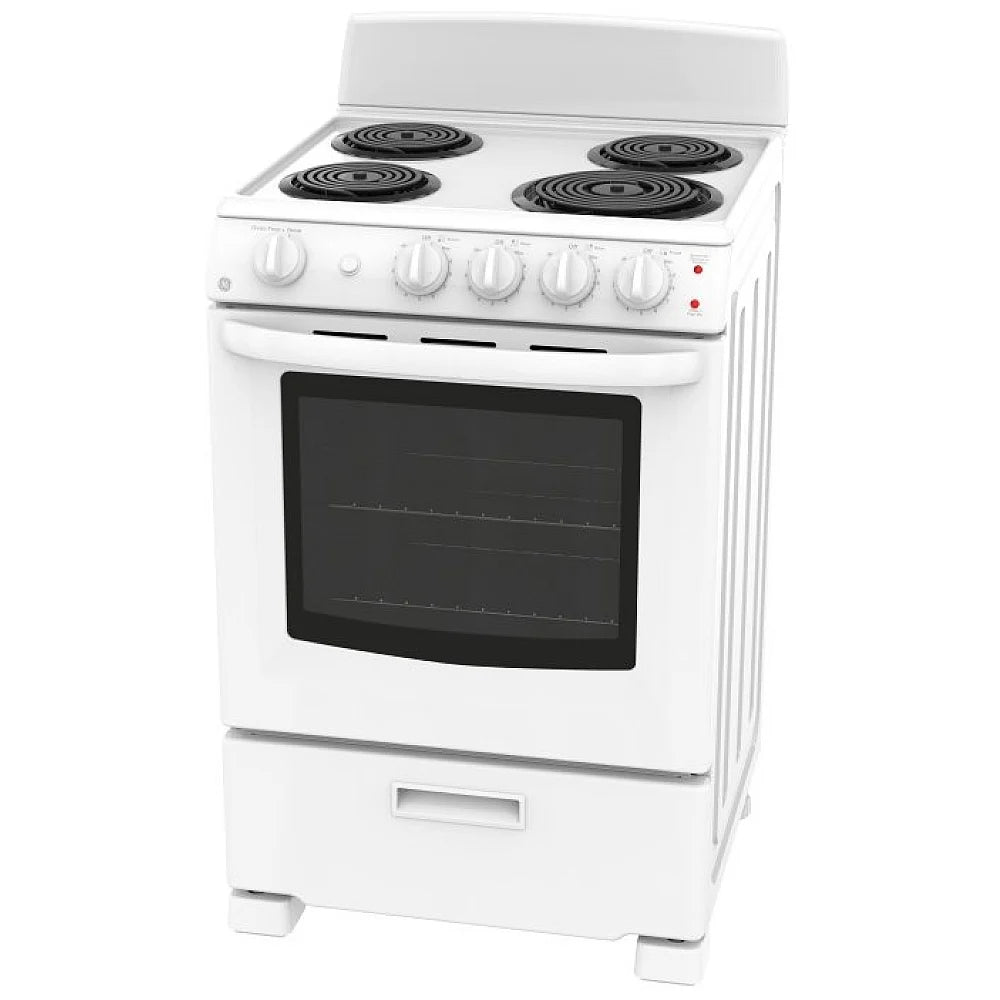

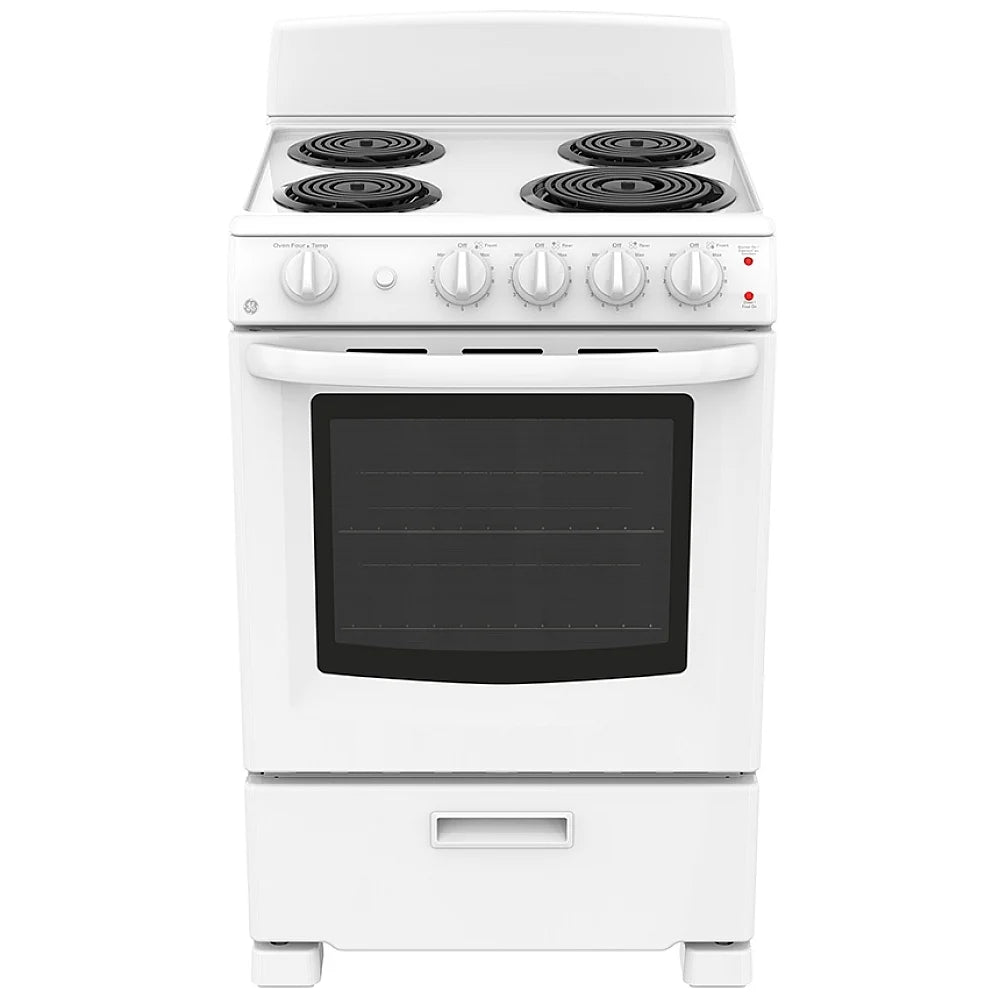

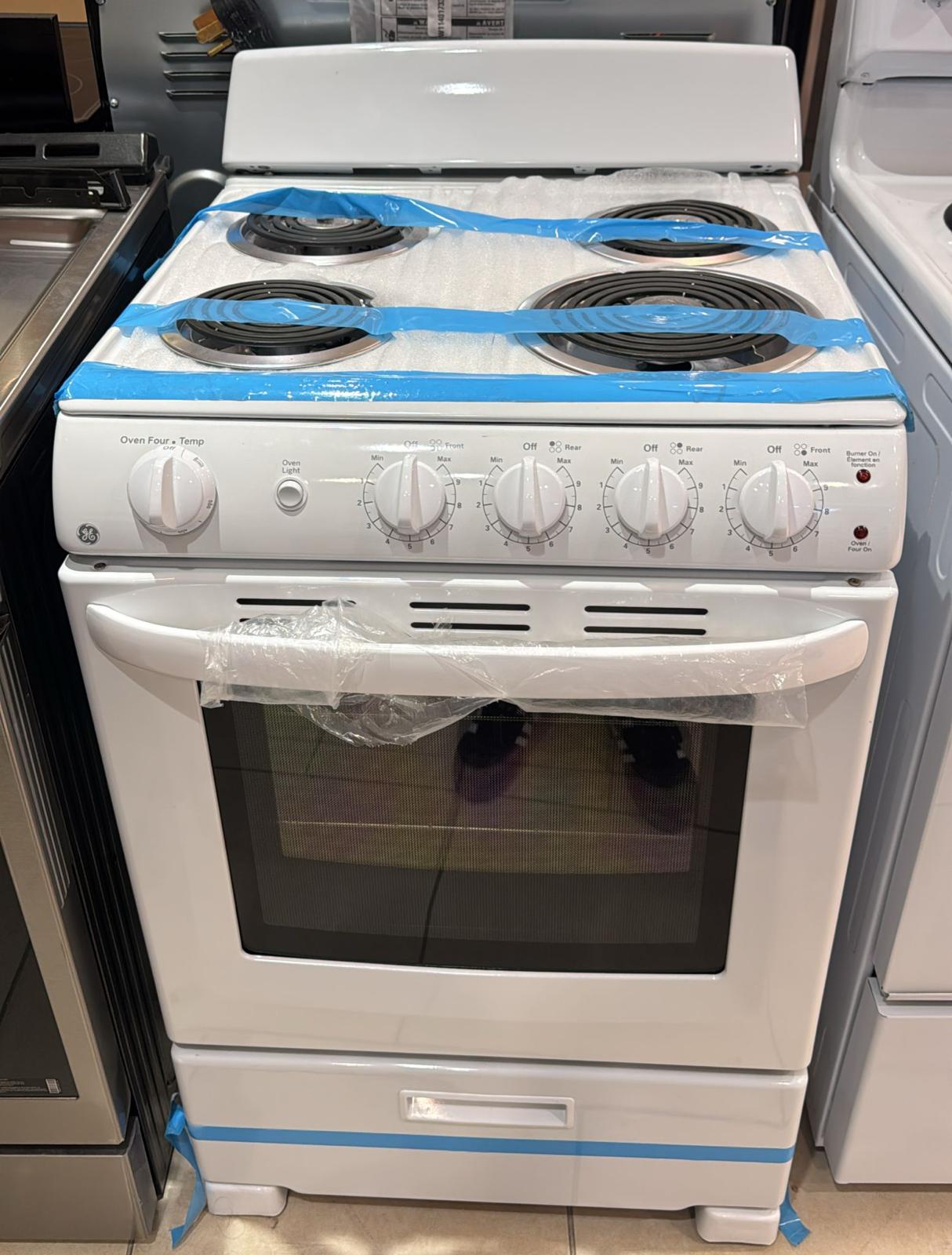

GE JCAS300DMWW Range, Electric, 24 inch Exterior Width, 4 Burners, 2.9 cu. ft. Capacity, Storage Drawer, 1 Ovens, White colour
JCAS300DMWW
- Low stock - 1 item left
| Specification | Value |
|---|---|
| Capacity | 2.9 Cu Ft |
| Width | 23.62 inches (cabinet width); 23.75 inches (overall width classed as 24") |
| Height (overall, to cooktop/backguard top) | 39.37 – 42.25 inches (adjustable legs / backguard) |
| Depth (cabinet) | 24.62 – 28.35 inches (varies by inclusion of handle / backguard) |
| Depth without handle | 24.62 inches |
| Depth with handle | 26.62 inches |
| Nominal Width Class | 24 inches |
| Appliance Fit Width | 24 inches (60 cm) |
| Color / Finish | White |
| Fuel Type | Electric |
| Range Type / Style | Freestanding, Single Oven |
| Cooktop Type / Surface Style | Coil elements, porcelain-coated surface |

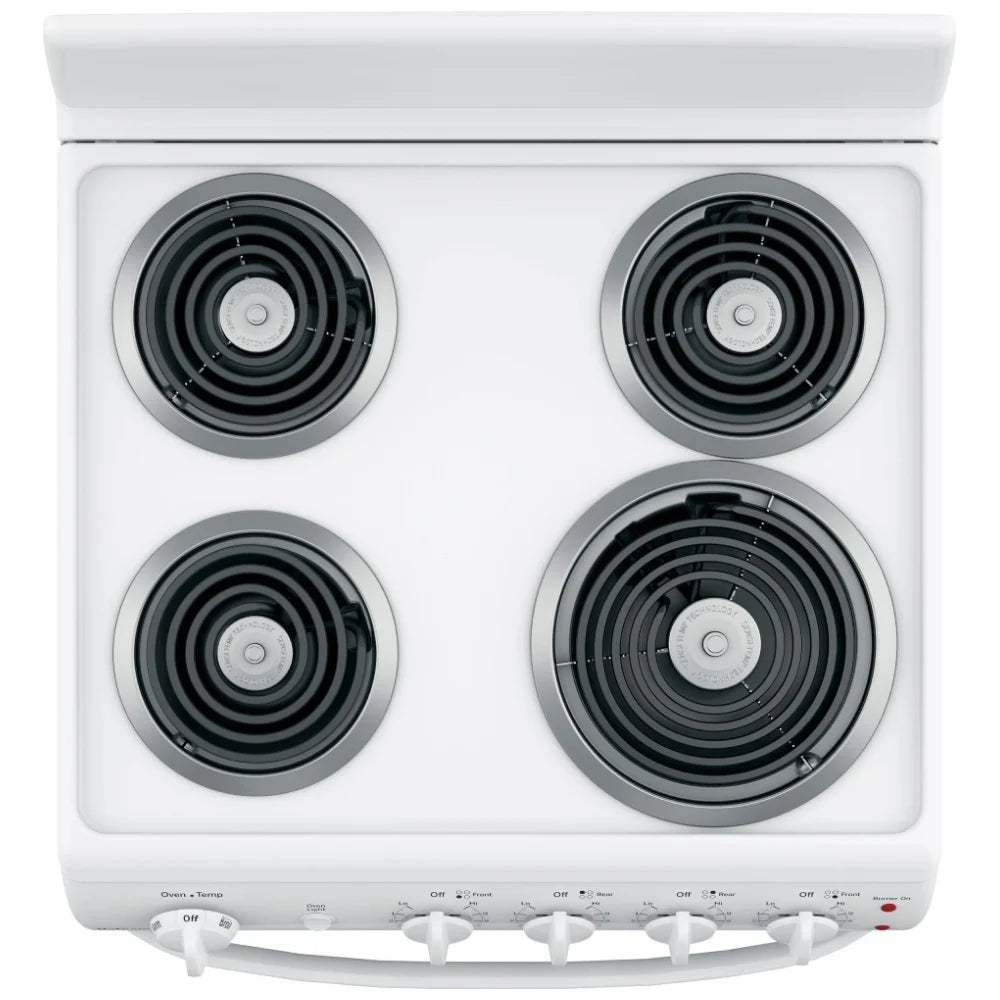

| Cooktop Features | 4 SensiTemp coil elements; hot surface / surface unit “On” indicator light; lift-up cooktop; chrome drip bowls |
| Number of Elements / Burners | 4 |
| Left Front Element | 6" 1250 W SensiTemp coil |
| Left Rear Element | 6" 1250 W SensiTemp coil |
| Right Rear Element | 6" 1250 W SensiTemp coil |
| Right Front Element | 8" 2400 W SensiTemp coil |
| Total Cooktop Power | 6150 W (approximate combined) |
| Oven Capacity | 2.9 Cu Ft |
| First Oven Capacity | 2.9 Cu Ft |
| Oven Type | Standard clean, non-convection |
| Oven Cleaning Method | Manual clean (standard clean) |
| Bake Element Power | 2000 W (4-pass bake) |
| Broil Element Power | 2400 W (4-pass broil) |
| Broil Function | In-oven broil |
| Preheat Function | Yes |
| Interior Oven Light | Yes |

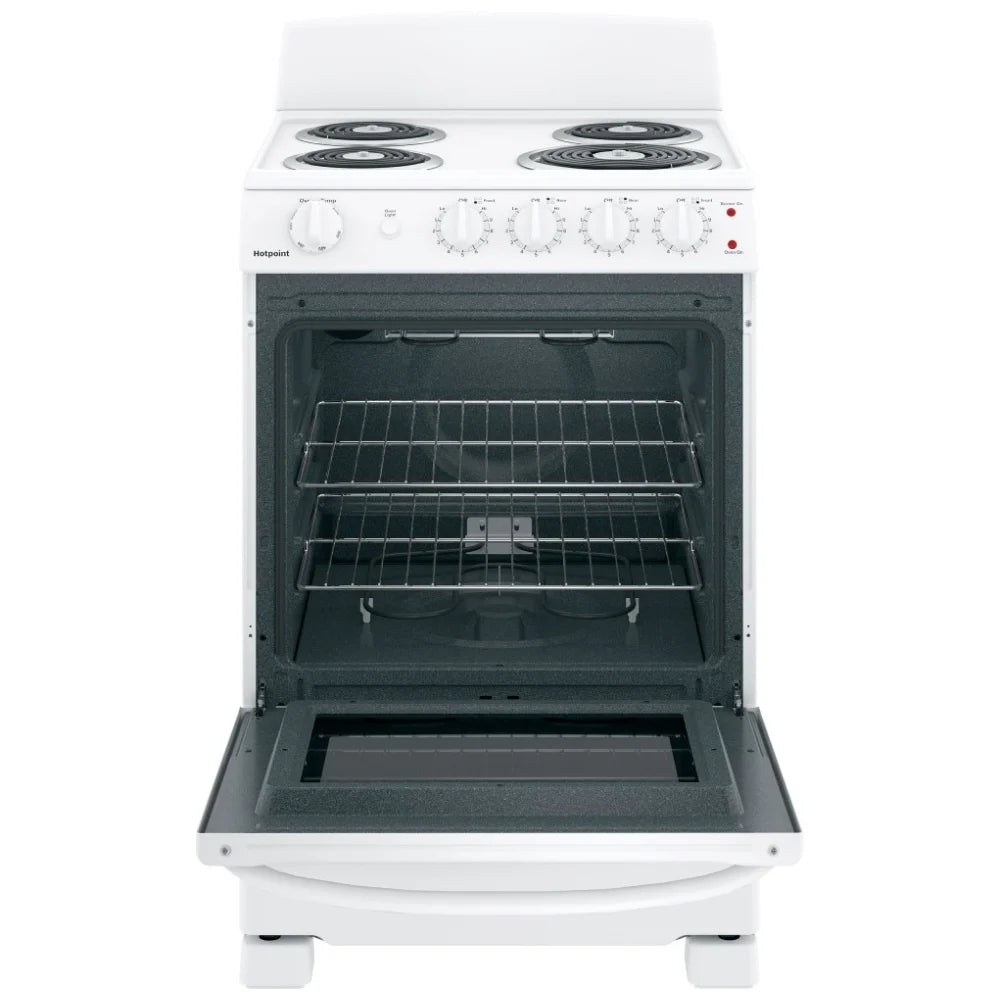

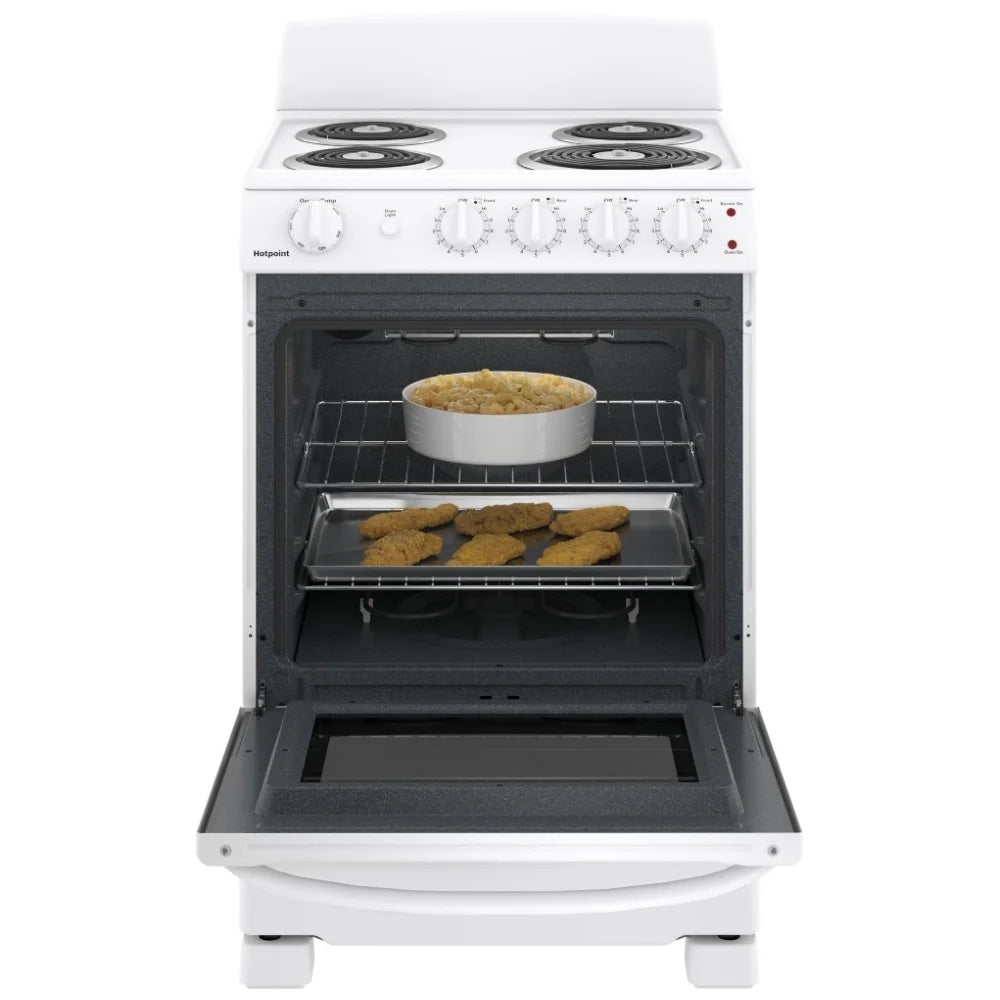

| Number of Oven Racks | 2 nickel oven racks |
| Rack Positions | 4 |

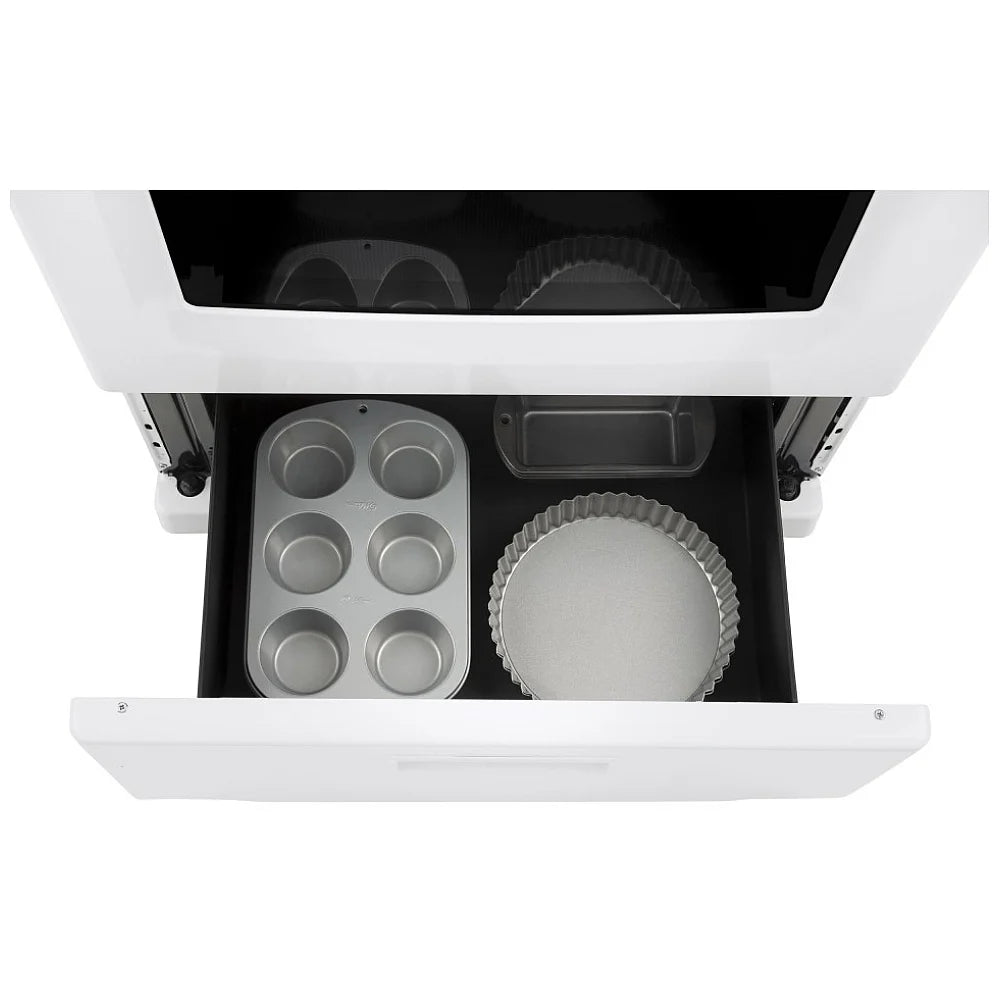

| Drawer Type | Storage drawer |
| Backguard | Removable backguard (for built-in or sleek appearance) |

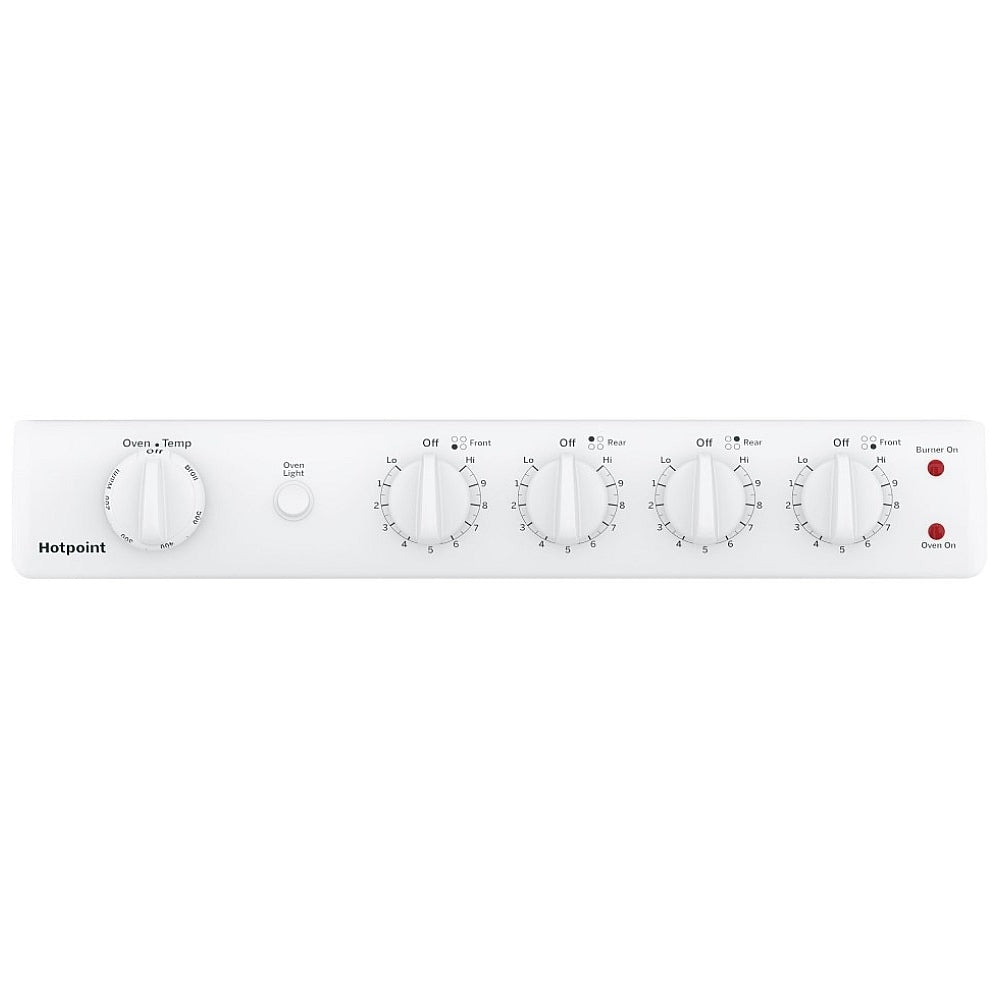

| Control Location | Front controls |
| Cooktop Control Type | Knobs (rotary) |
| Oven Control Type | Knobs (rotary) |
| Display Type | Printed markings |
| Indicator Lights | Surface unit “On” / hot surface indicator |
| ADA Compliant | Yes |
| Connectivity | None (no WiFi) |
| Self-Clean | No |
| Convection | No |
| Hidden Bake Element | No |
| Sabbath Mode | No |
| Air Fry | No |
| Number of Ovens | 1 |
| Voltage | 208 / 240 V |
| Frequency | 60 Hz |
| Amperage | 40 A |
| Power / Ratings | 208/240 V; 60 Hz; 40 A circuit required |
| Energy Star Rated | No |
| Downdraft Ventilation | No |
| Hood Recommended | Yes |
| Storage Drawer | Yes |
| Adjustable Legs | Yes |
