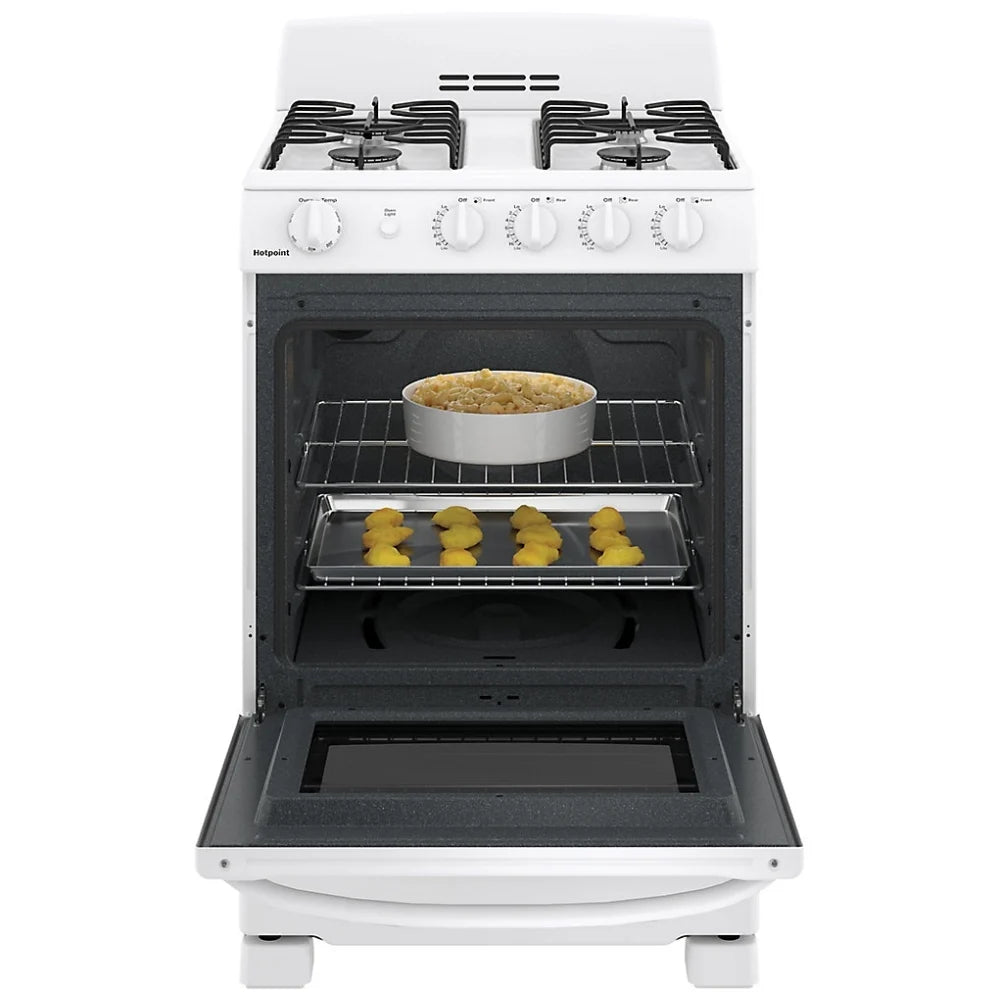

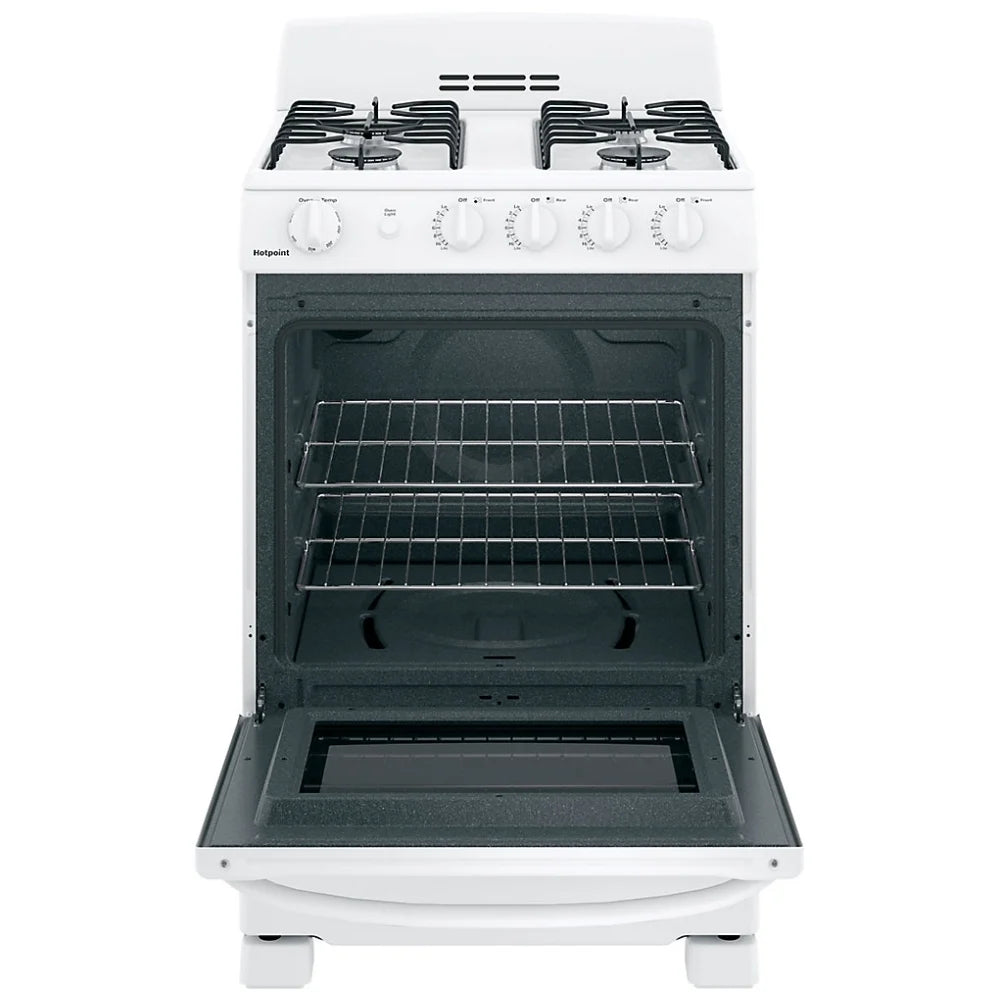

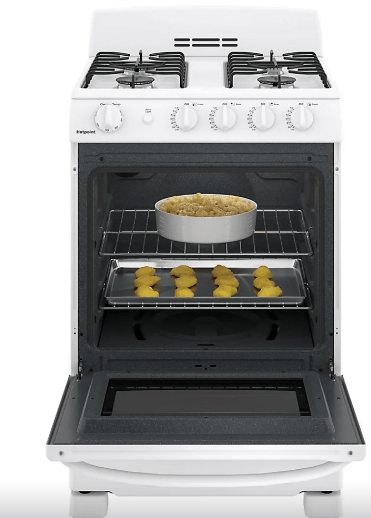

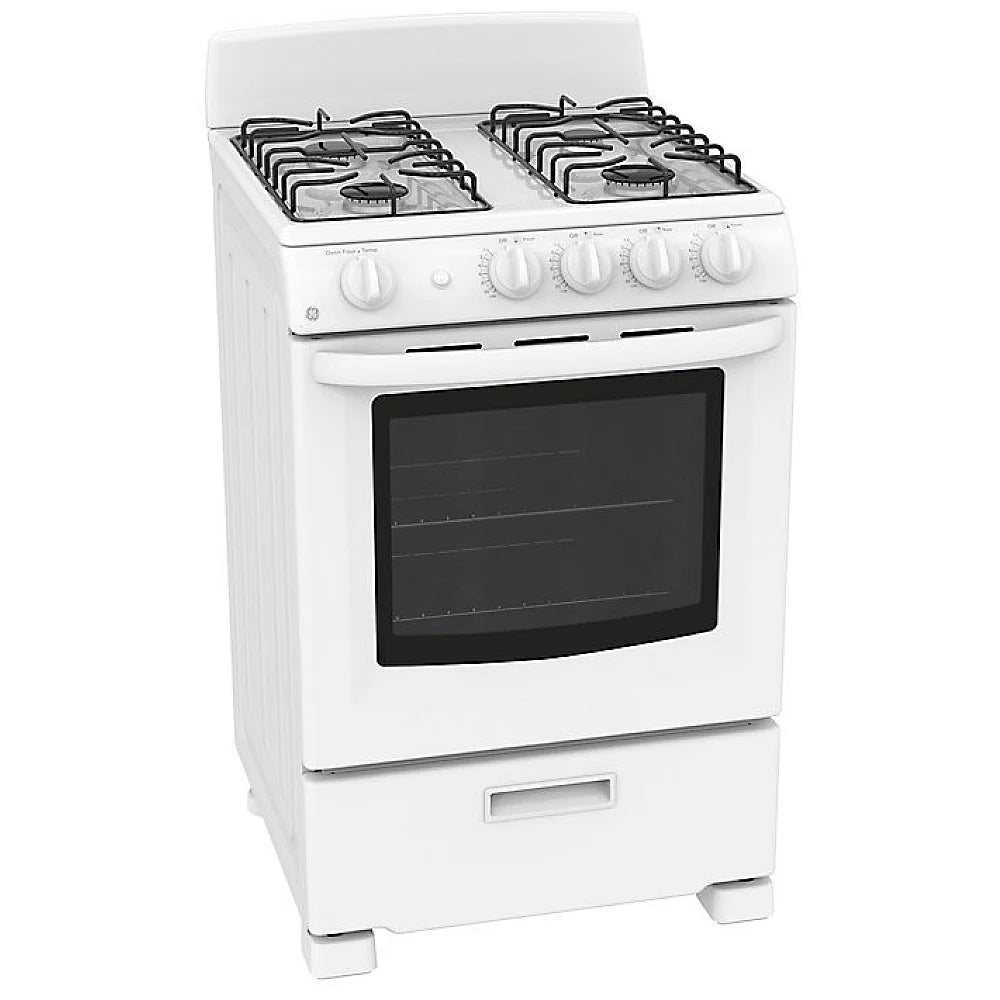

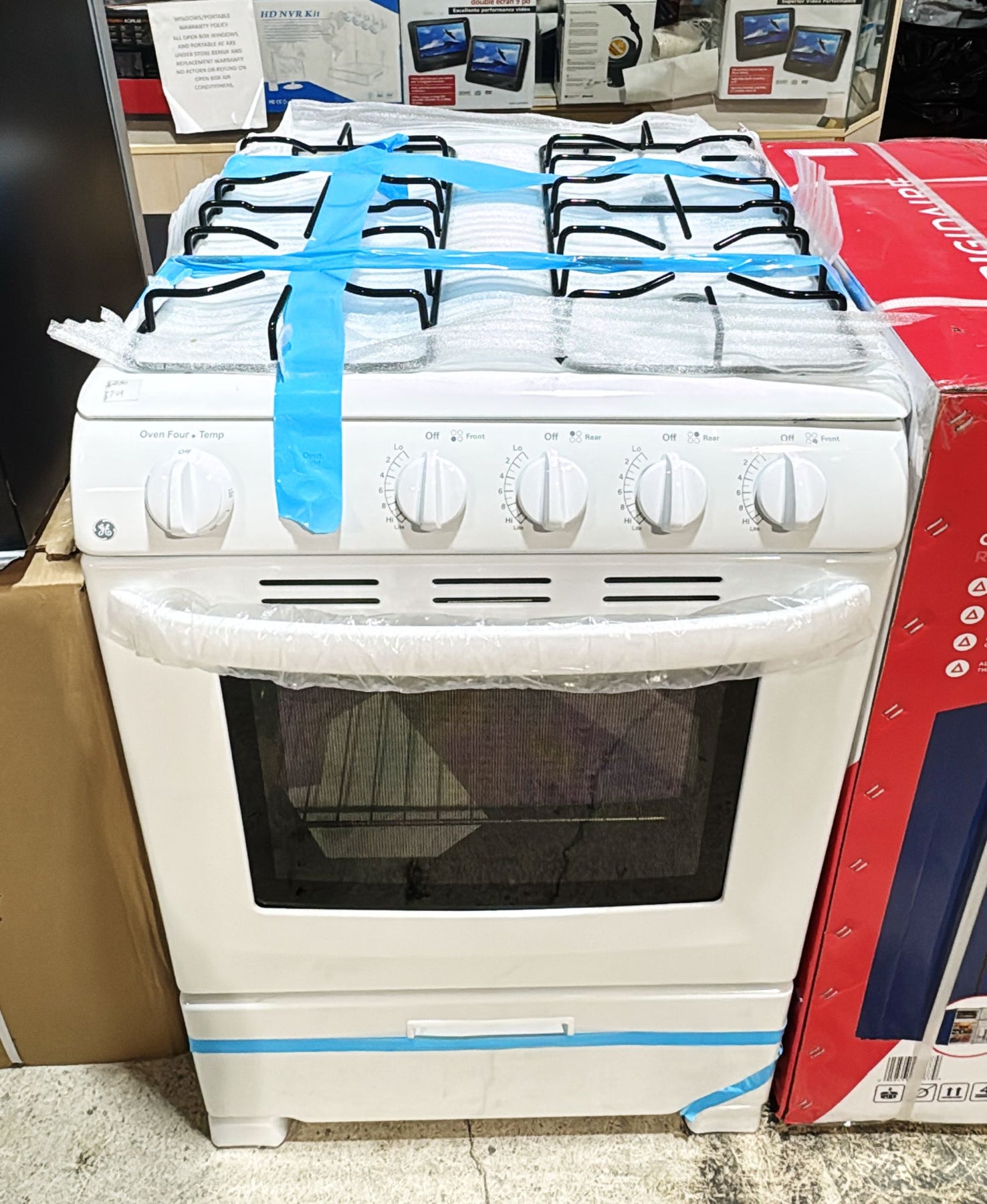

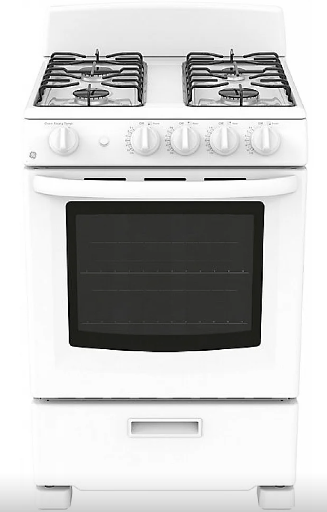

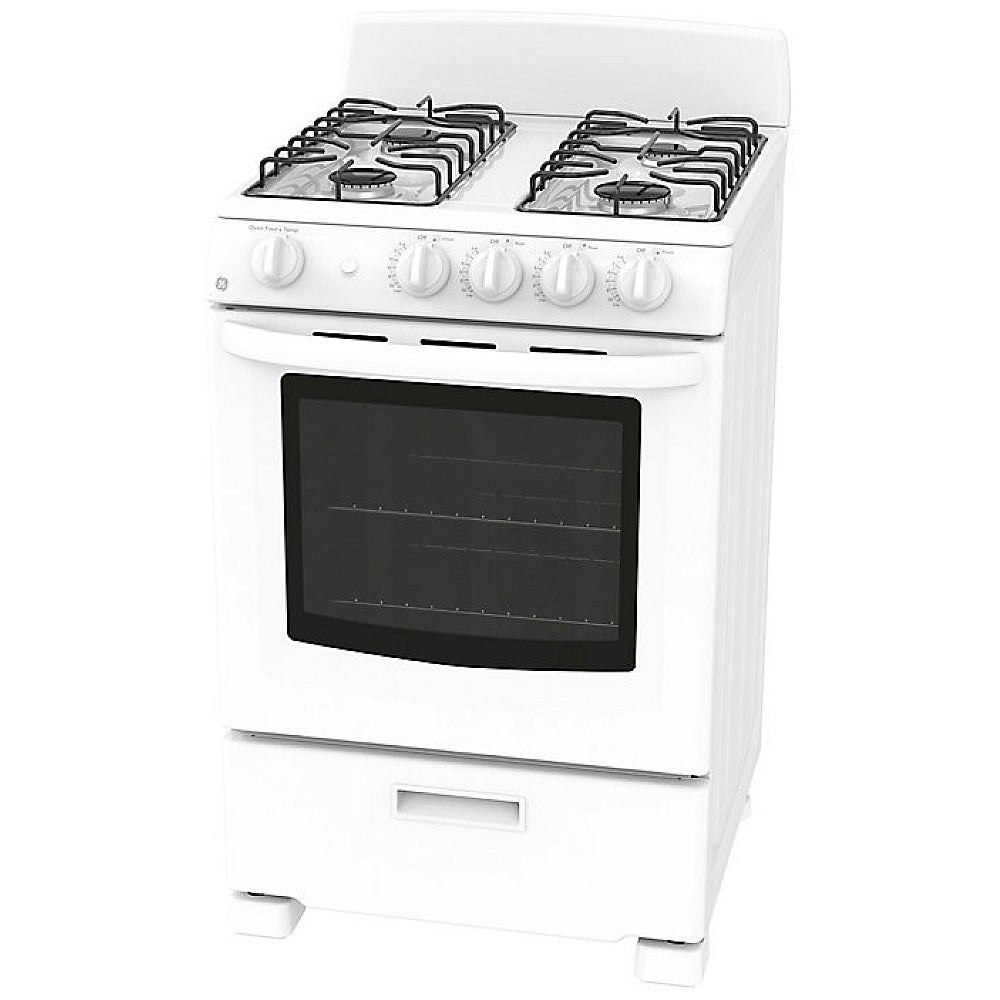

GE JCGAS300DMWW Range, 24" Exterior Width, Gas Range, Gas Burners, 4 Burners, 2.9 cu. ft. Capacity, Storage Drawer, 1 Ovens, 12K BTU, Front Controls, White colour
JCGAS300DMWW
- Low stock - 1 item left
| Specification | Value |
|---|---|
| Model | JCGAS300DMWW |
| Product Type | Freestanding Gas Range |
| Fuel Type | Natural Gas (LP convertible with included kit) |
| Installation Type | Freestanding / Standard |
| Color | White |
| Capacity | 2.9 Cu Ft |
| Number of Ovens | Single |
| Oven Type | Standard clean, non-convection |
| Cleaning Type | Manual / Standard clean |
| Oven Light | Yes |
| Rack Positions | 4 |
| Oven Racks Included | 2 nickel oven racks |
| Oven Window | Yes (large viewing window) |
| Bake Burner Output | 13,000 BTU |
| Broiler Location | Broiler drawer |
| Drawer Type | Storage / Broil drawer (varies by retailer description) |

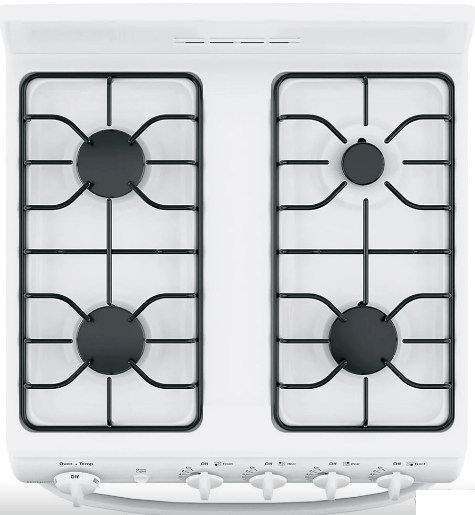

| Cooktop Type | Gas, sealed burners, lift-up porcelain cooktop |
| Number of Burners | 4 |
| Left Front Burner Output | 9,500 BTU |
| Left Rear Burner Output | 9,500 BTU |
| Right Front Burner Output | 12,000 BTU |
| Right Rear Burner Output | 5,000 BTU |
| Total Cooktop BTU (max) | 36,000 BTU |
| Burner Style | Sealed burners |
| Cooktop Surface Material | Porcelain-enameled upswept cooktop |
| Cooktop Grates | 2 grates |
| Ignition Type | Electronic ignition (no standing pilot) |

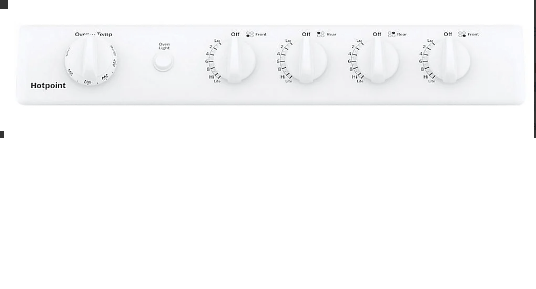

| Control Type | Knobs |
| Control Location | Front |
| Indicator Lights | 1 |
| Backguard | Removable / modular backguard |
| Special Features | Lift-up cooktop; removable backguard; ADA compliant; large oven window |
| ADA Compliant | Yes |
| LP Conversion Kit | Included |
| Included Accessories | 2 nickel oven racks; LP conversion kit; anti-tip device (per some retailers) |

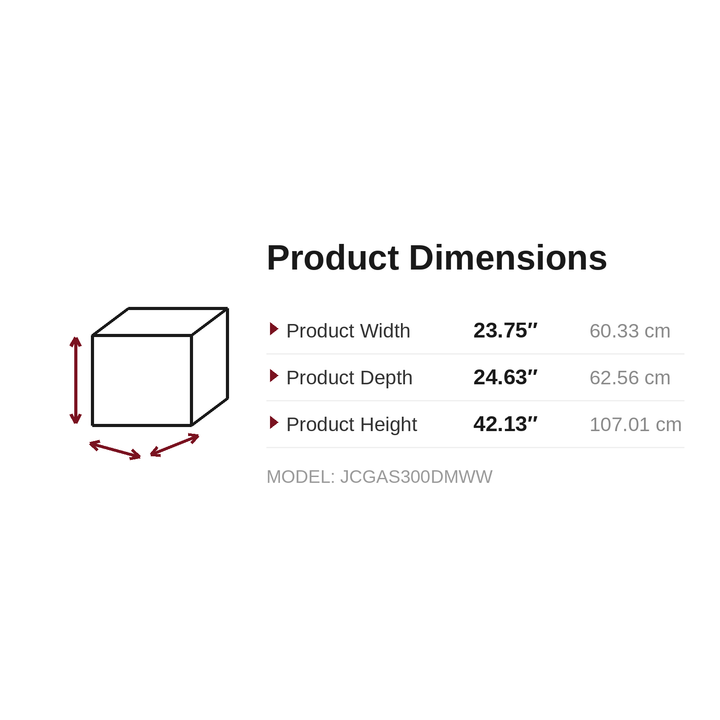

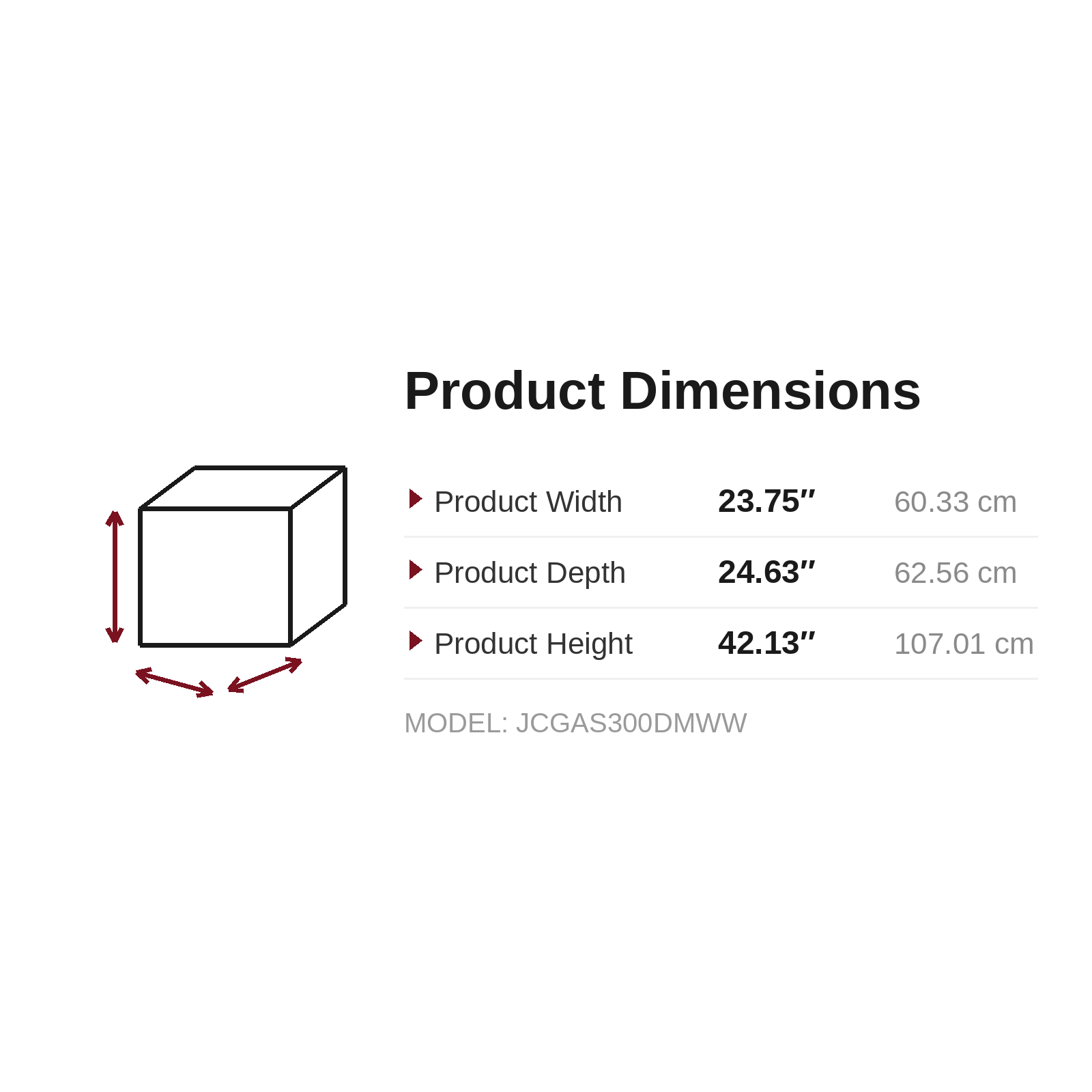

| Width | 23.75 inches |
| Class Width | 24 inches |
| Height | 42.13 inches |
| Depth (Including Handles) | 24.63 inches |
| Overall Depth with Backsplash | 26.63–26.63+ inches (commonly listed as 26-5/8 inches) |
| Approximate Assembled Depth (some listings) | 26.63 inches |
| Approximate Height (some listings) | 40.16–42.25 inches (varies by retailer; 42.13 inches used by GE Canada partners) |
| Approximate Depth (some listings) | 24.63–24.8 inches (cabinet body without full backsplash) |
| Cutout Width | 24 inches |
| Cutout Height | 36 inches |
| Cutout Depth | 24 inches |
| Weight | Approx. 88.5 lb (40.1 kg) |
| Electrical Requirements | 120V / 60Hz / 5A |
| Power Cord | Standard 120V cord (for ignition and lights) |
| Gas Type (factory) | Natural Gas |
| Convertible to LP | Yes, with included LP conversion kit |
| Number of Adjustable Legs | 4 adjustable legs |
| Range Style | Single oven gas range with lower drawer |
| Format | Freestanding (some retailers label as slide-in format category 0–24") |
