GE Profile PEP7030DTBB Electric Cooktop, 30 inch Exterior Width, 4 Burners, 3,100 Watts Highest Burner Element, Black color
PEP7030DTBB
- Low stock - 1 item left
| Specification | Value |
|---|---|
| Brand | GE Profile |
| Model | PEP7030DTBB |
| Product Type | Built-in electric cooktop |
| Fuel Type | Electric |
| Cooktop Type | Radiant smoothtop / ceramic glass |
| Color / Finish | Black |
| Cooktop Surface | Black ceramic glass / glass top |

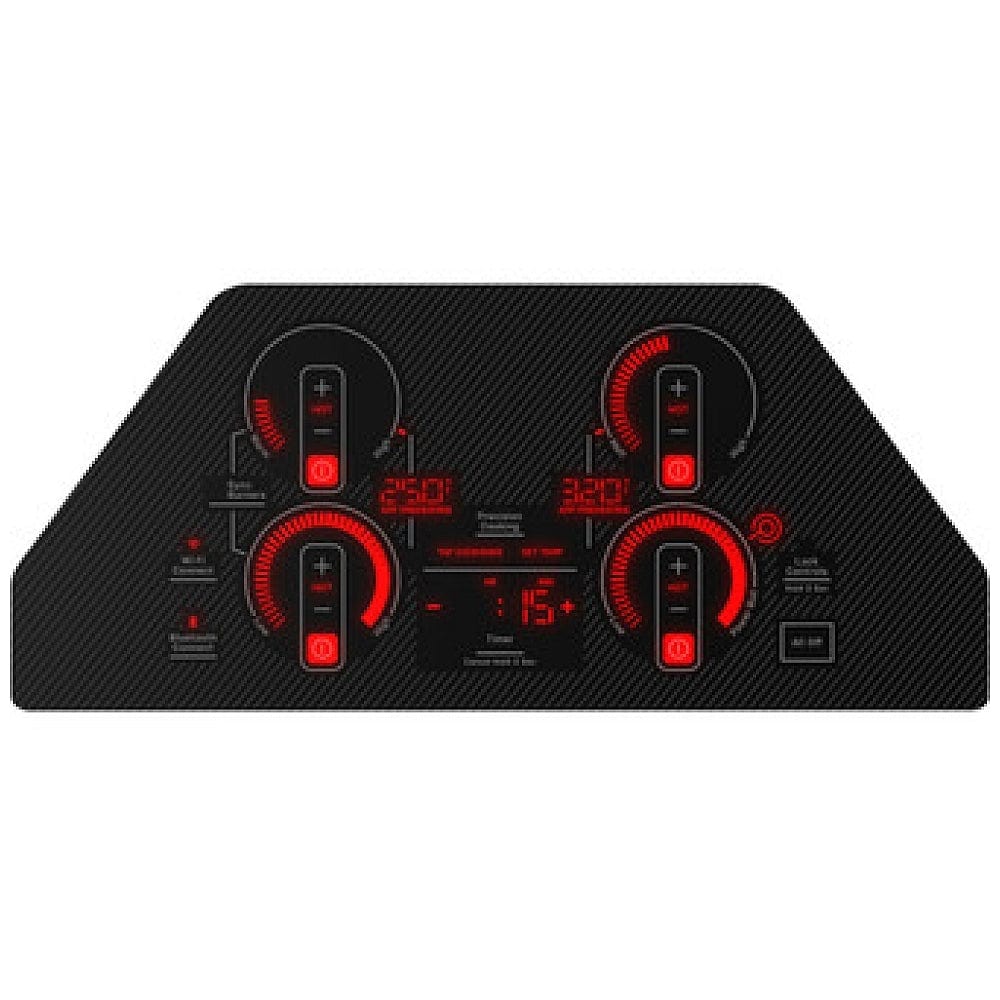

| Control Type | Electronic glide touch controls (touch controls, LED display) |
| Control Location | Front center |
| Number of Elements / Burners | 4 |
| Element Type | Ribbon radiant elements (smoothtop) |
| Left Front Element Size / Power | 7" – 1,500 W |
| Left Rear Element Size / Power | 7" – 1,500 W (Keep Warm) |
| Right Front Element Size / Power | 9"/6" dual-ring – 3,100 W Power Boil |
| Right Rear Element Size / Power | 6" – 1,200 W (Melt) |
| Power Boil Element | Yes – 3,100 W dual-ring (right front) |
| Dual / Multi-Ring Elements | 1 dual-ring element (9"/6" right front) |
| Sync / Bridge Elements | Yes – two 7" synchronized elements (left front and left rear) |
| Keep Warm Setting | Yes (dedicated on left rear element) |
| Melt Setting | Yes (dedicated on right rear element) |
| Precision Temperature Control | Yes (100–500°F with compatible smart pan) |
| Guided Cooking | Yes – with HestanCue smart cookware and SmartHQ app |
| Wi‑Fi Connectivity | Built-in Wi‑Fi |
| Smart Features | SmartHQ app compatibility, guided cooking, precision cooking with HestanCue pans, Bluetooth Chef Connect with select hoods/OTRs |
| Chef Connect | Yes – Bluetooth pairing with compatible hoods/OTRs |
| Number of Heat Settings | 11 glide touch heat levels |
| Indicator Lights | Hot surface indicators; surface element “ON” indicators; red indicators |
| Control Lock | Yes – control lock capability |
| All-Off Control | Yes – all-off safety feature to turn off all elements at once |
| Kitchen Timer | Yes – integrated timer |
| Fit Guarantee | Yes – designed to fit existing 30" cutout (modification credit up to $100 where applicable) |
| ADA Compliant | Yes |
| Downdraft Ventilation | No |
| Sabbath Mode | No |
| Commercial Use Rated | No |
| Overall Width | 29 3/4" to 29 7/8" (commonly listed as 29.75" or 29.88") |
| Overall Depth | 20 7/8" to 21 1/2" (commonly listed as 20.88" or 21.5") |
| Overall Height | Approx. 3 1/4" to 3 9/16" (commonly listed as 3.25" or 3.56") |
| Cooktop Size Class | 30" |
| Cabinet Width (minimum) | 30" |
| Cutout Width | 28 1/2" |
| Cutout Depth | 19 5/8" |
| Cutout Width (cm) | 72.39 cm |
| Cutout Depth (cm) | 49.86 cm |
| Overall Width (cm) | Approx. 75.6–75.9 cm |
| Overall Depth (cm) | Approx. 53.0–54.6 cm |
| Overall Height (cm) | Approx. 8.3–9.0 cm |
| Net Weight | Approx. 34 lb (15.4 kg) |
| Approximate Shipping Weight | Approx. 40 lb (18.1 kg) |
| Electrical Requirements | 208/240 V; 60 Hz; 40 A circuit (recommended) |
| Voltage | 208/240 V |
| Frequency | 60 Hz |
| Recommended Circuit Breaker at 240 V | 40 A |
| Recommended Circuit Breaker at 208 V | 30 A |
| Max. Connected Load at 240 V | 7.4 kW |
| Max. Current Draw at 240 V | Approx. 30.8 A |
| Max. Connected Load at 208 V | 5.6 kW |
| Max. Current Draw at 208 V | Approx. 26.9 A |
| Number of Hot Surface Indicator Lights | Multiple hot surface indicators (typically 4) |
