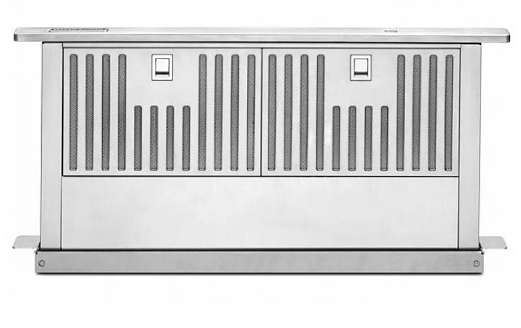

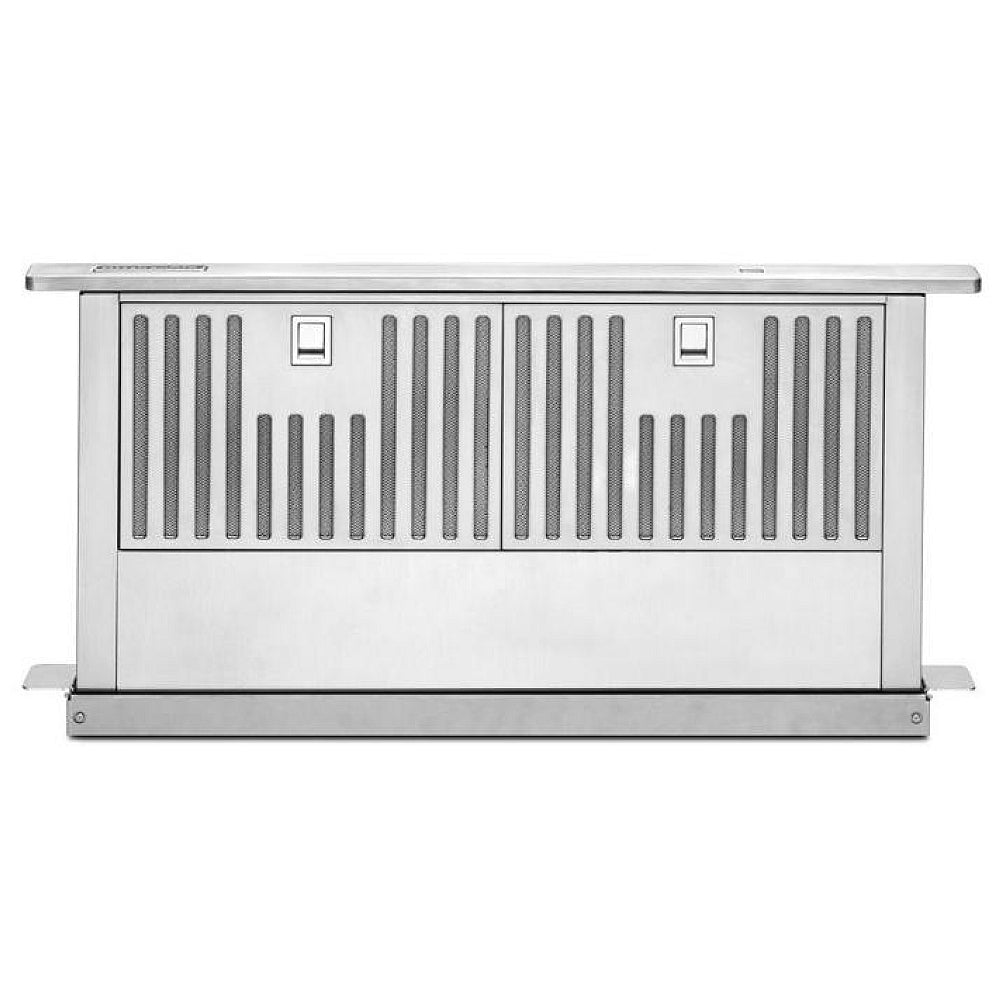

KitchenAid KXD4630YSS Downdraft, 30 inch Exterior Width, 600 CFM, NA, Aluminum Mesh Filter, Stainless Steel colour Blower Included
KXD4630YSS
- Low stock - 2 items left
| Specification | Value |
|---|---|
| Model | KXD4630YSS |
| Product Type | Retractable downdraft ventilation system (ducted hood) |
| Hood Type | Retractable downdraft |
| Series / Collection | KitchenAid Specialty Series |
| Finish / Colour | Stainless Steel |
| Material | Stainless Steel |
| Common Size | 30 in |
| Nominal Cooktop Compatibility | Most 30" or 36" cooktops, including some commercial-style surfaces |
| BTU Threshold / Rating | 65,000 BTU |

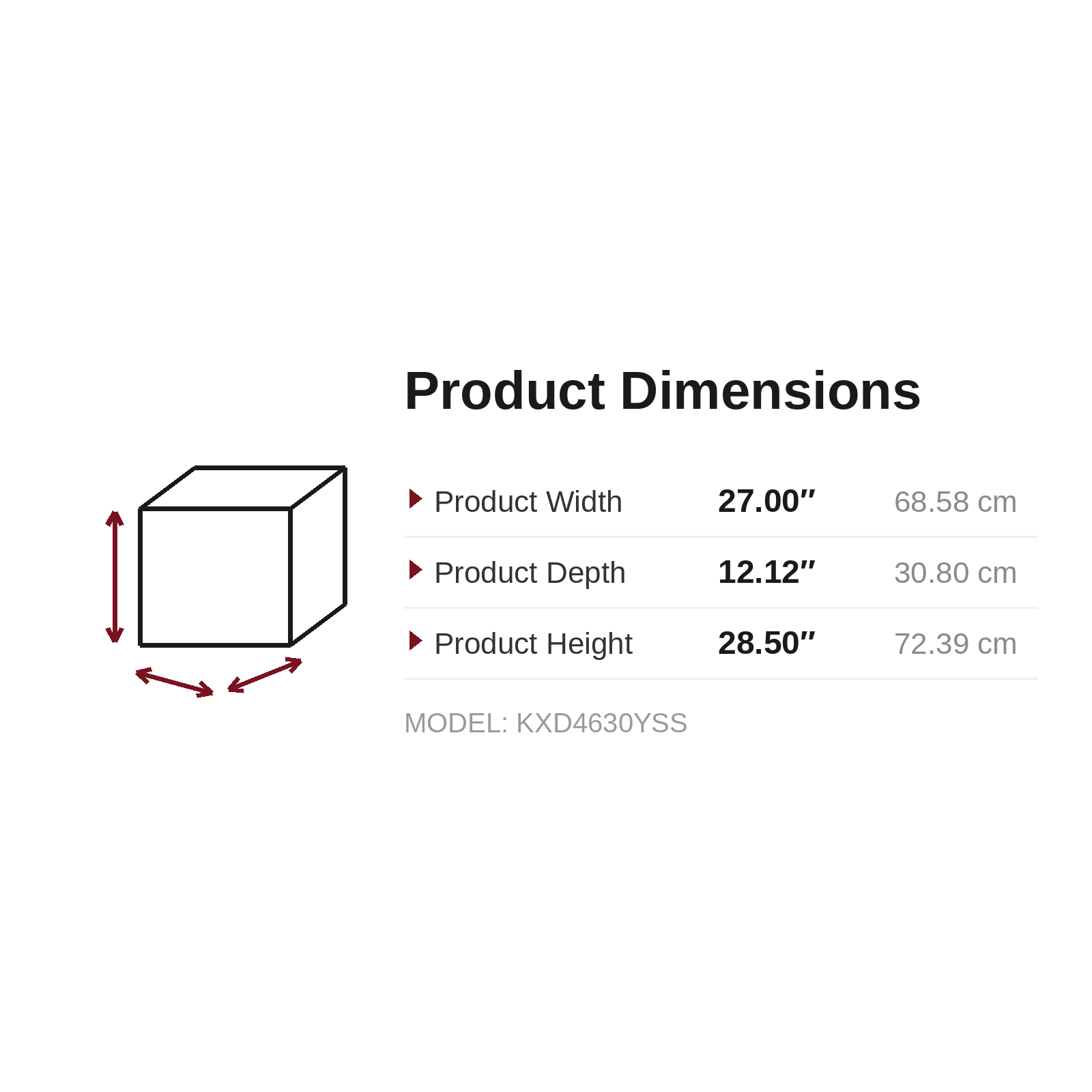

| Width | 27 inches |
| Height | 28.5 inches |
| Depth | 12.125 inches (12-1/8") |

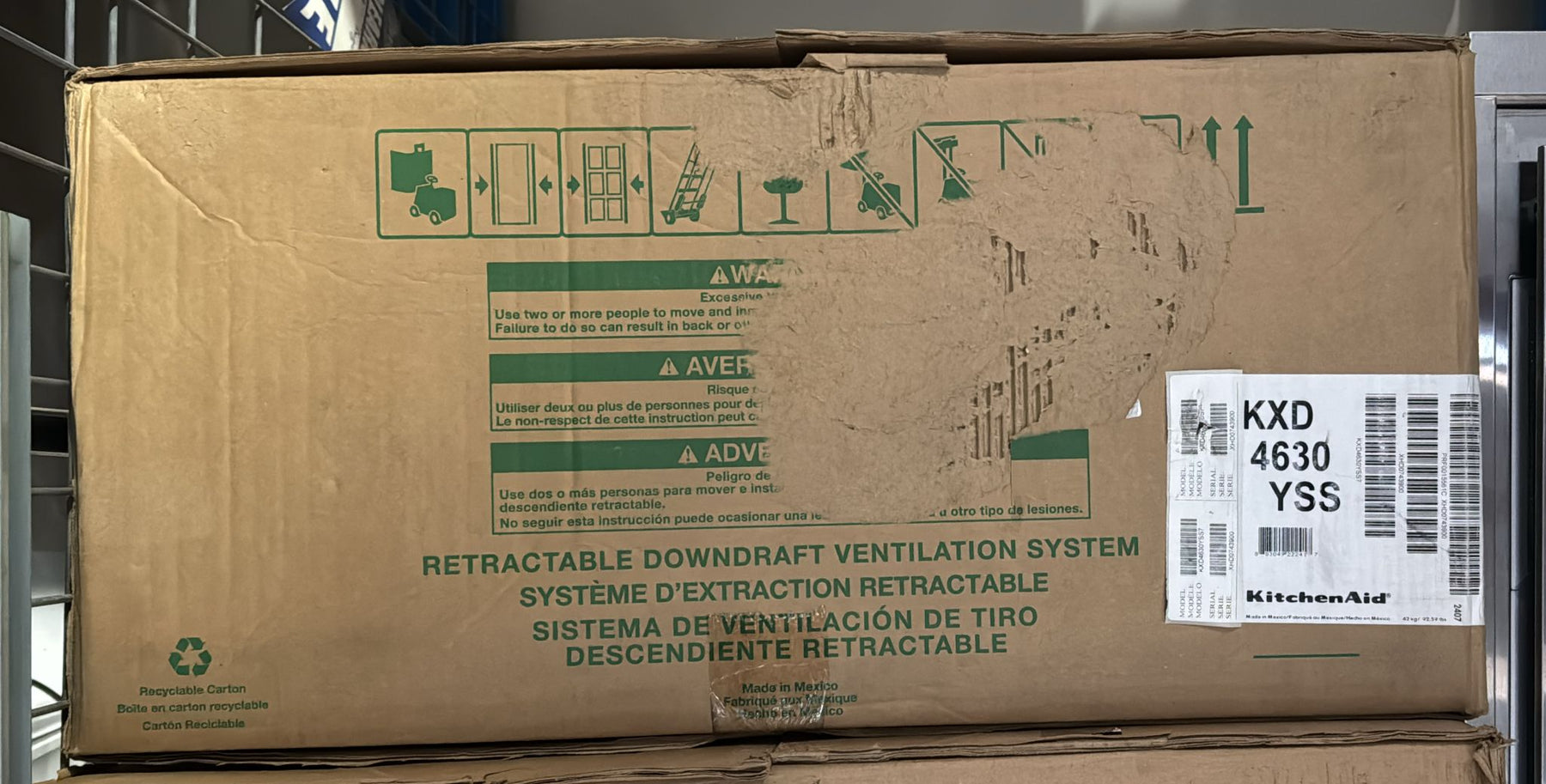

| Carton Width | 34 inches |
| Carton Height | 16 inches |
| Carton Depth | 35 inches |
| Net Weight | 66 lb (approx. 30.0 kg) |
| Gross Weight | 93 lb (approx. 42.2 kg) |

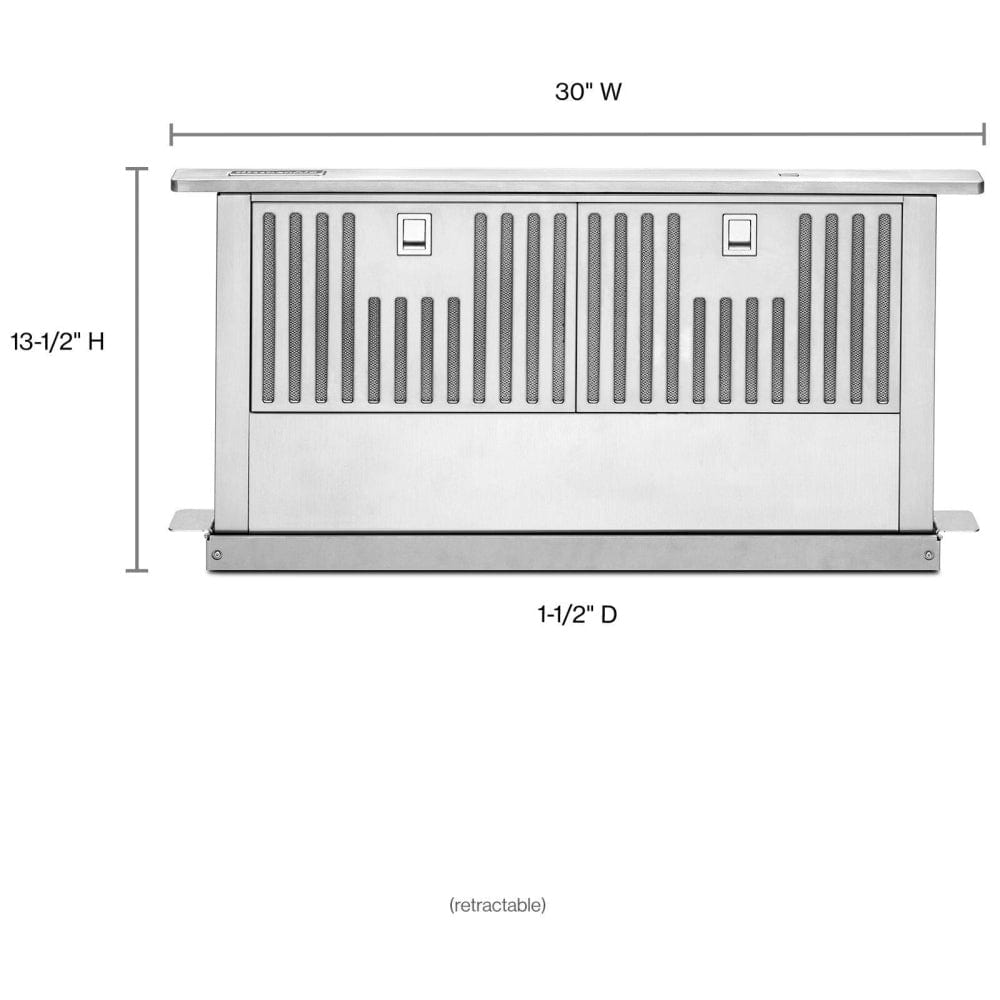

| Rise Height (vent extension above countertop) | 13.5 inches (approx. 14" class) |
| Ventilation Type | Ducted, exterior venting |

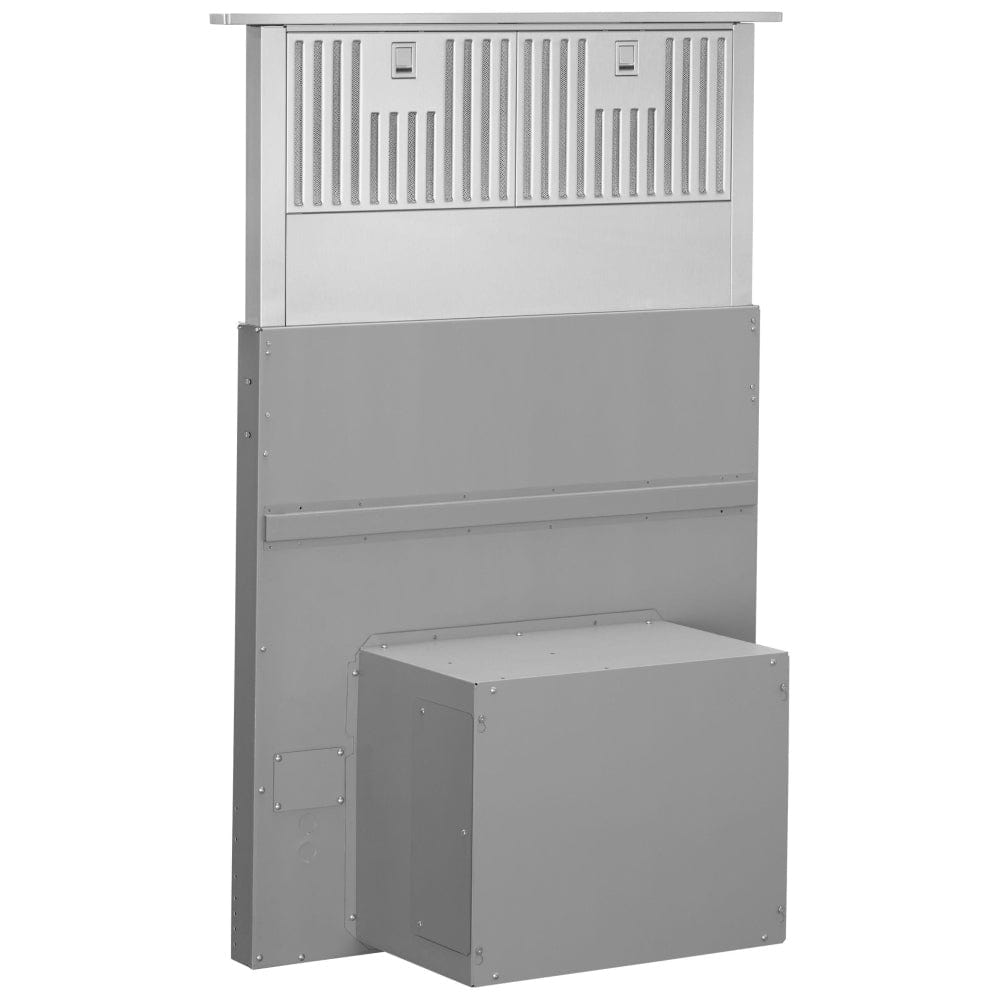

| Blower Type | Centrifugal, interior-mounted Pro motor |
| CFM Motor Class | 585 CFM |
| Maximum CFM (marketing) | 600 CFM class |
| Number of Fan Speeds (Manufacturer) | 11 speeds |
| Number of Fan Speeds (Alternate Listings) | 4 speeds (slide control) – older/alternate spec; manufacturer 11-speed data takes precedence |

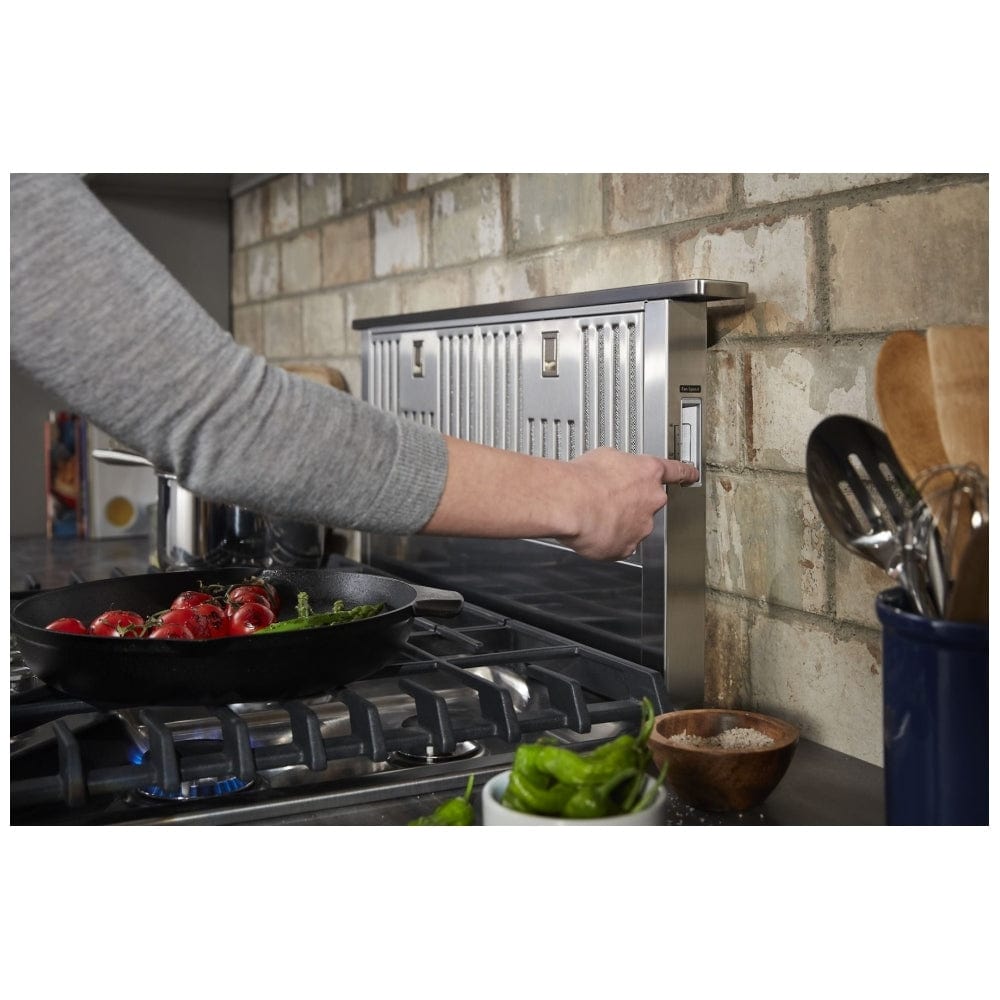

| Control Type | Push button (hidden location) |
| Control Location | Hidden |
| Hood & Vent Features | Auto Turn On; Perimeter Ventilation; Retractable design |
| Sound Level at Max Speed | Approx. 7.9 sones (some Canadian listings note up to 11 sones at high speed) |
| Duct Direction | Vertical |
| Duct Outlet Size | 6 inches (15.24 cm) |
| Duct Type | Round (some Canadian listings: rectangular or round) |
| Ventilation Direction | Downdraft |
| Venting | Exterior |
| Filters | Grease filters, dishwasher-safe premium mesh filters |
| Filter Type (material) | Aluminum mesh (dishwasher-safe) |
| Dishwasher-Proof Filters | Yes |

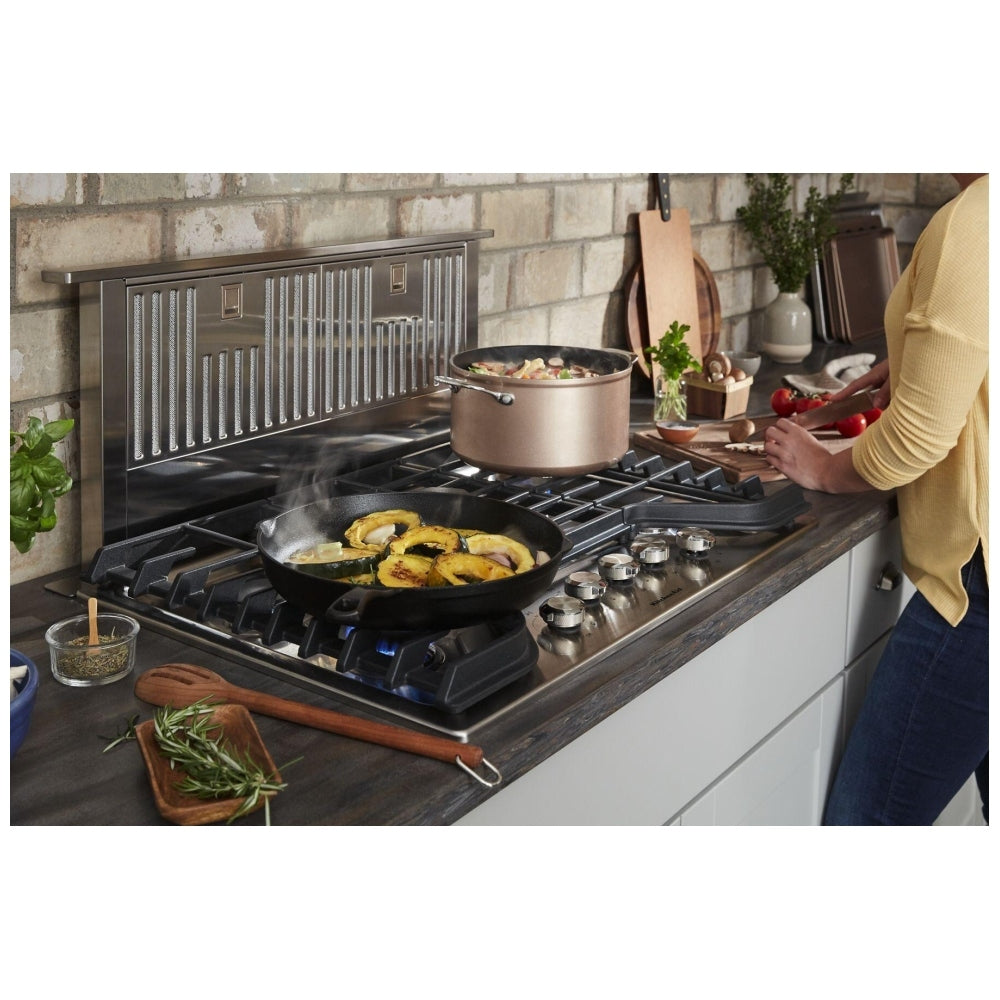

| Retractable Downdraft Design | Remains flush with countertop when off; rises above cooktop when in use |

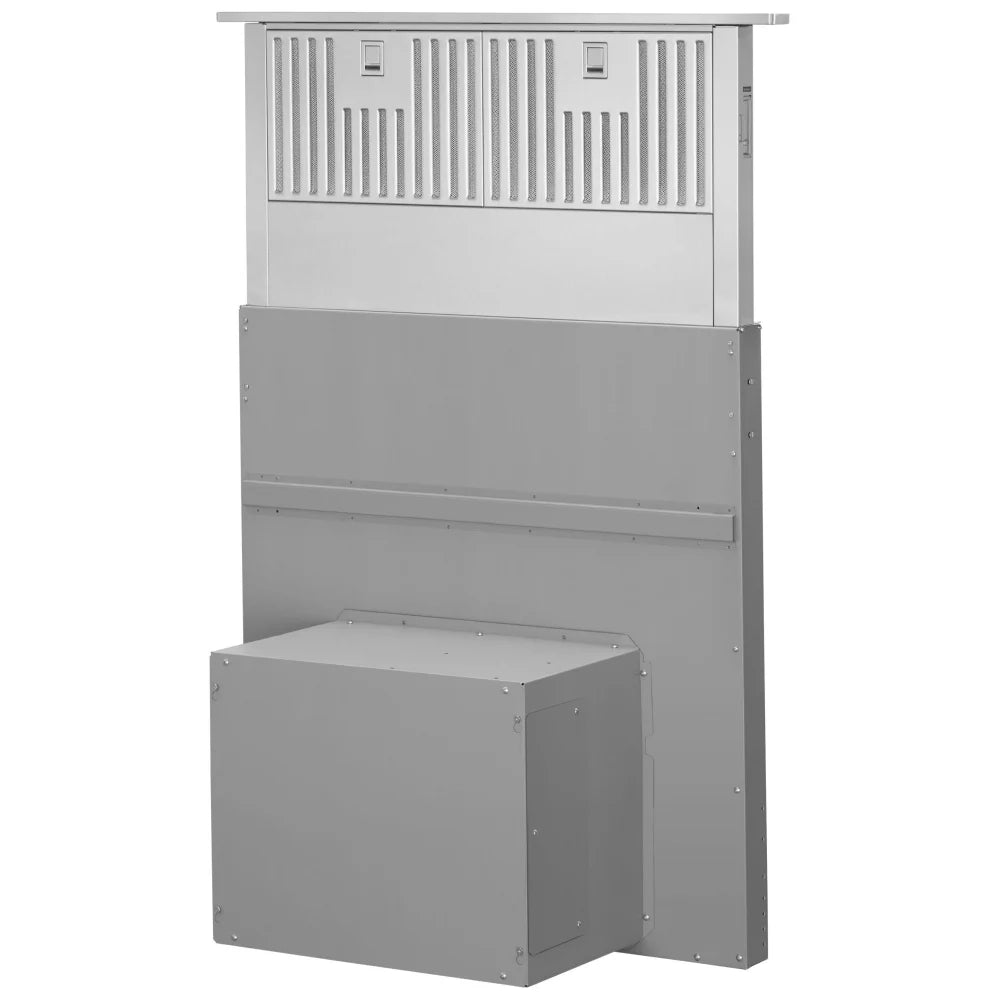

| Reversible Motor Box | Yes – can be installed on either side to free cabinet space |
| Vented Sides and Bottom | Yes (per Canadian spec) |
| Auto On / Automatic Turn On | Yes |
| Perimeter Ventilation | Yes |
| Optional Accessories | Trim kit / accessory W10446915 (and other trim covers, per some dealers) |
| Electrical Requirements | 120 V, 60 Hz, 15 A |
| Voltage | 110/120 V |
| Frequency | 60 Hz |
| Amps | 15 A |
| Country of Origin | Mexico |
| Installation Type | Countertop / behind cooktop, built-in downdraft |
| Appliance Fit Width | 30 in class |
| Energy Star Certified | No |
| HVI Certified | No (per some Canadian listings) |
| Prop 65 | Standard (California: Cancer and Reproductive Harm warning) |
| UL Certification | Yes (per dealer listings) |
