Moffat MCBS585DNWW Electric Range, 5 cu. ft. Capacity, 30 inch Exterior Width, 4 Burners, Storage Drawer, Manual Clean, 2,000 W Highest Element, White colour
MCBS585DNWW
- Low stock - 1 item left
| Specification | Value |
|---|---|
| Capacity | 5.0 cu ft |

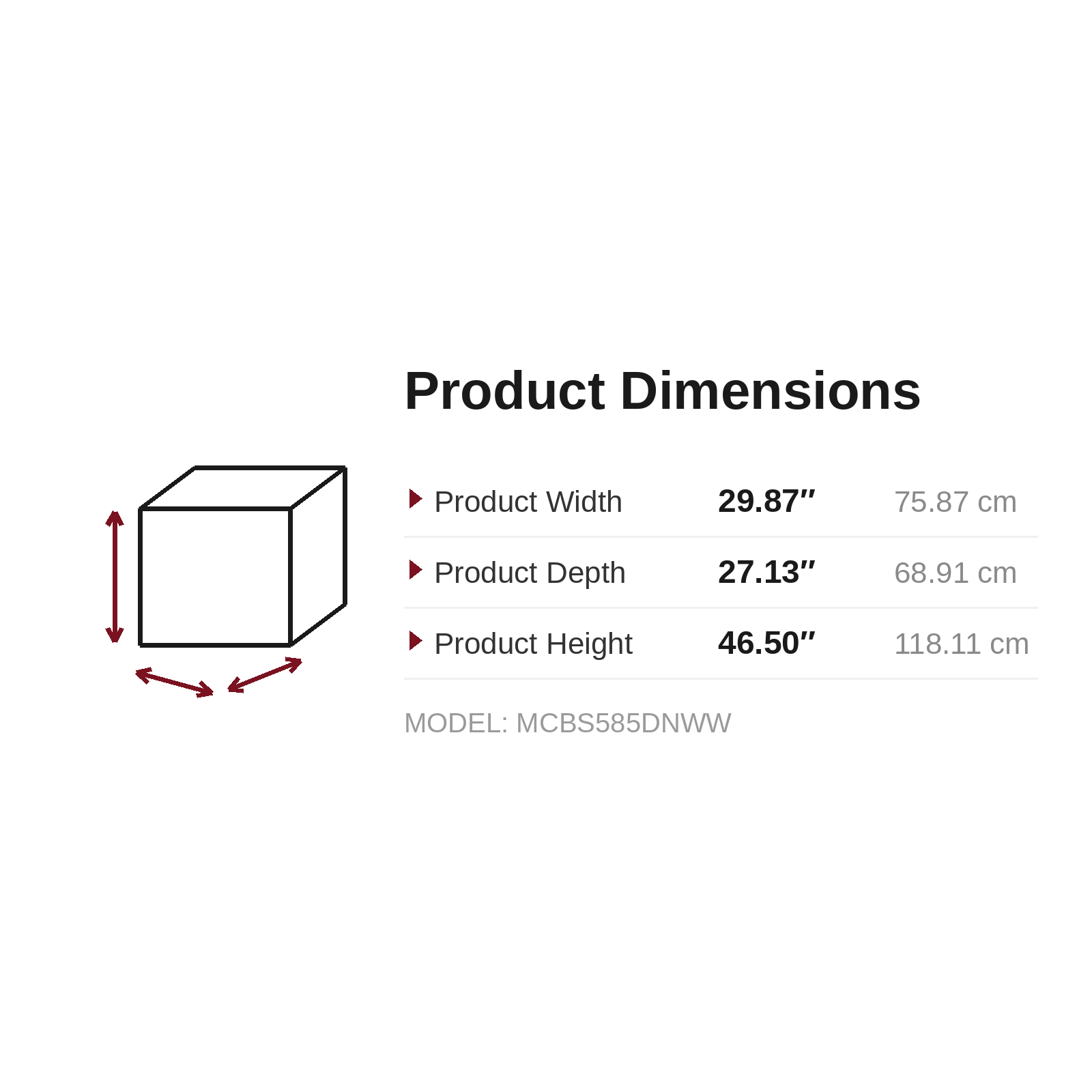

| Width | 29.87 – 29.92 inches (nominal 30 inches) |
| Height | 46.5 inches (backsplash top) |
| Height (to cooktop / control panel front) | 39.25 inches |
| Depth (cabinet to front, without handle) | 26.25 – 27.13 inches |
| Depth (including handle) | 27.75 inches |
| Depth with Door Open | 46.25 inches |
| Nominal Width | 30 inches |
| Product Weight | Approx. 145 lb (65.8 kg) |
| Approximate Shipping Weight | Approx. 165 lb (75 kg) |
| Fuel Type | Electric |
| Range Type | Freestanding / Free-Standing Single Oven |
| Installation Type | Standard / Freestanding |
| Color | White (White on White) |
| Oven Door Type | White glass with Big ClearView window |
| Side Panels | Textured steel, white |
| Cooktop Type | Smoothtop / ceramic glass |
| Cooktop Surface Color | Black ceramic glass |
| Number of Elements / Burners | 4 |
| Element Configuration | 2 × 6" 1500 W, 2 × 8" 2000 W |
| Front Left Element | 6" 1500 W |
| Front Right Element | 8" 2000 W |
| Rear Left Element | 8" 2000 W |
| Rear Right Element | 6" 1500 W |
| Element Type | Ribbon elements under glass (smooth surface) |
| Expandable Elements | No |
| Drip Bowls | No |
| Hot Surface Indicator Lights | Yes (1) |
| Infinite Heat Controls | Yes |
| Oven Capacity | 5.0 cu ft (super large capacity) |
| Number of Ovens | Single |
| Oven Style | Single oven, free-standing |
| Oven Racks | 2 chrome / nickel racks |
| Oven Rack Positions | 5–6 positions (multi-position rack supports) |
| Oven Light | Yes, interior oven light |
| Oven Cleaning Method | Manual clean (no self-clean) |
| Self-Cleaning | No |
| Convection | No |
| Hidden Bake Element | No |
| Primary Bake Feature | Dual-Element Bake (upper broil + lower bake alternation) |
| Bake Function | Yes |
| Broil Pan | Yes |
| Bake Wattage | 2585 W |
| Broil Wattage | 3410 W |
| Drawer Type | Storage drawer (Quick Clean, frameless design) |
| Drawer Features | Full-width removable storage drawer, Quick Clean design |
| Control Location | Backsplash (rear console) |
| Control Type | Electronic oven controls with knobs for elements |
| Oven Temperature Control | Electronic control / digital thermostat |
| Oven Controls and Clock | QuickSet electronic controls with clock |
| Digital Temperature Display | Yes |
| Electronic Clock and Timer | Yes |
| Timer | Yes |
| Cook Time / Time Bake | Yes |
| Indicator Lights | 1 (plus hot-surface indicator) |
| Sabbath Mode | Certified Sabbath Mode (availability may vary by region) |
| Wi-Fi Connected | No |
| Air Fry | No |
| ADA Compliant | No |
| Electrical Requirements | 240 V / 60 Hz, 40 A (also rated for 208 V) |
| Amps @ 240V / 208V | 40 A |
| kW Rating at 240V | 11.4 kW |
| kW Rating at 208V | 8.6 kW |
| Voltage | 240 V (208 V compatible), 60 Hz |
| EnerGuide / Energy Consumption | Approx. 524 kWh/year |
| Hood Recommended | Yes (no downdraft ventilation) |
| Downdraft Ventilation | No |
| Smudge-Proof Stainless | No (white finish) |
| Temperature Probe | No |
| Induction Cooking | No |
| Concealed Cooking Element | No |
| Materials | Metal cabinet with ceramic glass cooktop |
| Levelling System | 4 levelling legs (easy leveling system) |
| Handle Style | Designer-style oven door handle |
| UPC / EAN | UPC 067732155194, EAN 0067732155194 |
| Manufacturer Product Code | MCBS585DNWW |
| Collection / Brand | Moffat (GE Appliances Canada) |
| Warranty | 1-year limited parts & labour, in-home (Canada) |
